Product Details:
|
| Size: | 21.5" FHD Led | Resolution: | 1920 X 1080 |
|---|---|---|---|
| CPU: | ARM RK3288 Cortex-A17 1.8 GHz | Memory: | 2G DDR3 |
| Storage: | EMMC 8G（16G Optional） | Touchscreen: | Multi-Touch PCAP |
| I/O: | VGA/HD-MI/LAN/USB/COM | Display Brightness: | 250 Cd/m2 |
| Material: | High-strength Al-alloy, Support IP65 | Power Consumption: | ≦20W |
| High Light: | 21.5Inch Android Touch Panel PC,RK3288 Android Touch Panel PC,VESA all in one pc touch screen |
||
About Us
10+ Years in Industrial PC Hardware
Professional R&D Teams
CE, ROHS, IP68, IP69K Authentication Certificate
OEM&ODM Service
Quick Response&Delivery
1 Year long guarantee 100%
Perfect After-Sales Service
Specification
| PPC-R215WAC | ||
| System | CPU | ARM RK3288 Cortex-A17 1.8 GHz |
| Memory | 2G DDR3 | |
| Storage | EMMC 8G(16G Optional) | |
| GPU | ARM Mali-T764 | |
| Lan | RTL 8211E 1000 Lan | |
| Audio | RTL ALC662 | |
| Operation System | Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04 | |

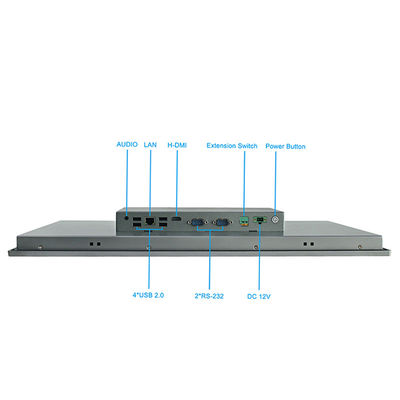

| I / O | H-DMI | 1 x H-DMI |
| LAN | 1 x LAN | |
| USB | 4 x USB 2.0 | |
| COM | 2 x RS232 | |
| Audio | 1 x AUDIO | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| LCD Panel | Panel Size | 21.5" FHD Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250 cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

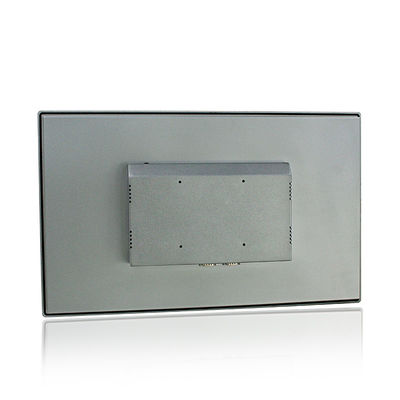

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 538 x 330 x 58 mm | |
| Cut-out Size | 520 x 312 mm | |
| Packing Size | 630 x 190 x 480 mm | |
| Gross Weight | 12 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
| Power Consumption | ≦20W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
