Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 7" LED |
|---|---|---|---|
| Resolution: | 1024 X 600 | CPU: | Intel Celeron J1900 2.0GHz |
| Memory: | 4GB/8GB ( Optional) | Harddisk: | 32G SSD/64G/120G/250G ( Optional) |
| I/O Port: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | RJ45 Industrial Fanless Mini PC,Capacitive Industrial Fanless Mini PC,Industrial capacitive touchscreen pc |
||
Feature

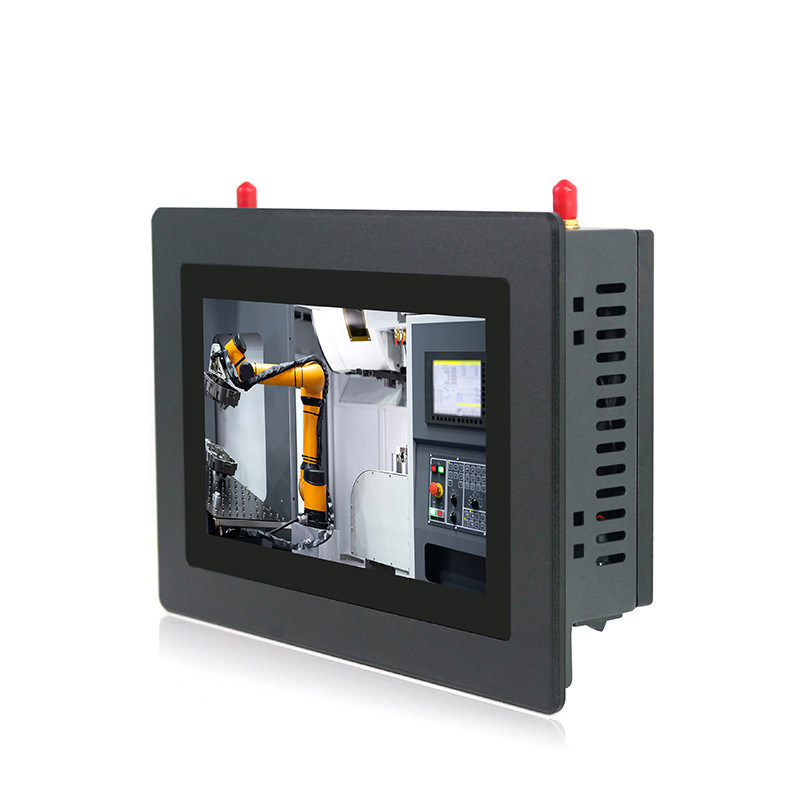

PPC-J007WAC is a cost-effective industrial grade Panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.
1. 7" TFT LED, resolution 1024 x 600, capacitive touch
| PPC-J007WAC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI |
| COM | 1 x COM | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| LAN | 1 x LAN | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 7" Led |
| Resolution | 1024 x 600 | |
| Aspect Ratio | 10:9 | |
| Display Brightness | 500 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 75 / 75 / 70 / 75 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Aluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 220 x 152 x 52 mm | |
| Cut-out Size | 208 x 143 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~19V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
