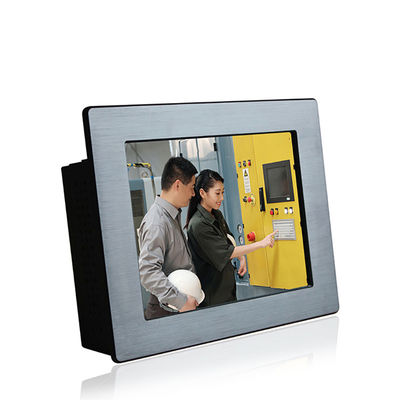

Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 8.4" LED |
|---|---|---|---|
| Resolution: | 800 X 600 | CPU: | Intel Celeron J1900 2.0GHz |
| Memory: | 4GB/8GB ( Optional) | Harddisk: | 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Port: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | 5 Wire fanless panel pc touch screen,OEM fanless panel pc touch screen,Resistive rugged all in one pc |
||
Feature
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
1. 8.4" TFT LED with Resistive Touch
2. Intel Celeron Quad Core J1900 2.0GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 8GB
4. Multi ports for option: VGA/HDMI/LAN/USB/COM
5. DC 12V-24V Input, (+9V～36V) wide voltage input optional
6. -20°C ~ 70°C extended operating temperature
7. IP65 Compliant Front Panel
| PPC-J008SAR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA |
| Digital signal | 1 x HD-MI | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| LAN | 1 x LAN | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 8.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 600:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 235 x 185 x 55 mm | |
| Cut-out Size | 221 x 171 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~19V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Product Advantages:
The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
The panel pc is compatible with Windows 7/8/10, Linux OS and embedded OS, also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
Packing List:
1x PPC-J008SAR Series Industrial Panel PC
1x Utility DVD Driver
4x Embedded Buckles
1x Power Adaptor
