Widescreen 12.1Inch Industrial Touch Panel Computer , Intel J1900 Panel Pc Touch Screen
Industrial Touch Panel Pc Widescreen 12.1" 1280 X 800 Intel J1900 Feature 1. 12.1" TFT LED, resolution 1280*800, Multi-Touch PCAP 2. Intel Bay trail j1900 CPU: 2.0GHz, industrial mini PC 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Win7/8/10/Linux/Ubuntu 5. DC IN 9V~36V Specification PPC-J012WAC System CPU Intel Celeron Quad Core J1900 2.0GHz L2 Cache 2MB Chipsets Intel Bay Trail SOC Memory DDR3L 1333MHz 4GB, Up to 8GB Harddisk 1 x mSATA 64G SSD / (
12.1 Inch industrial touch panel computer
,J1900 industrial touch panel computer
,industrial panel pc touch screen
Industrial Touch Panel Pc Widescreen 12.1" 1280 X 800 Intel J1900
Feature
1. 12.1" TFT LED, resolution 1280*800, Multi-Touch PCAP
2. Intel Bay trail j1900 CPU: 2.0GHz, industrial mini PC

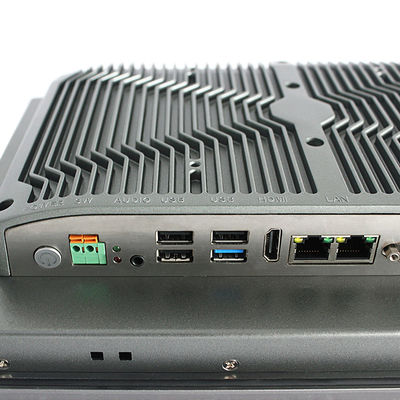

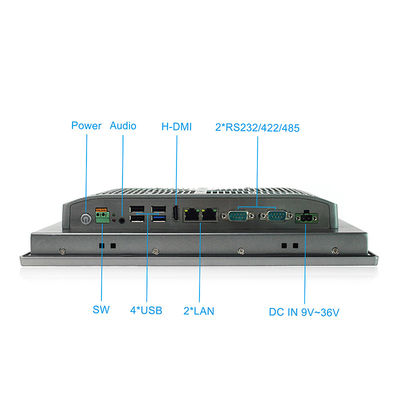

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC IN 9V~36V
Specification
| PPC-J012WAC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 314 x 216 x 60 mm | |
| Cut-out Size | 300 x 203 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
Application
Ticket machine
Out fare turnstile gates
SMArt Lockers parcel locker

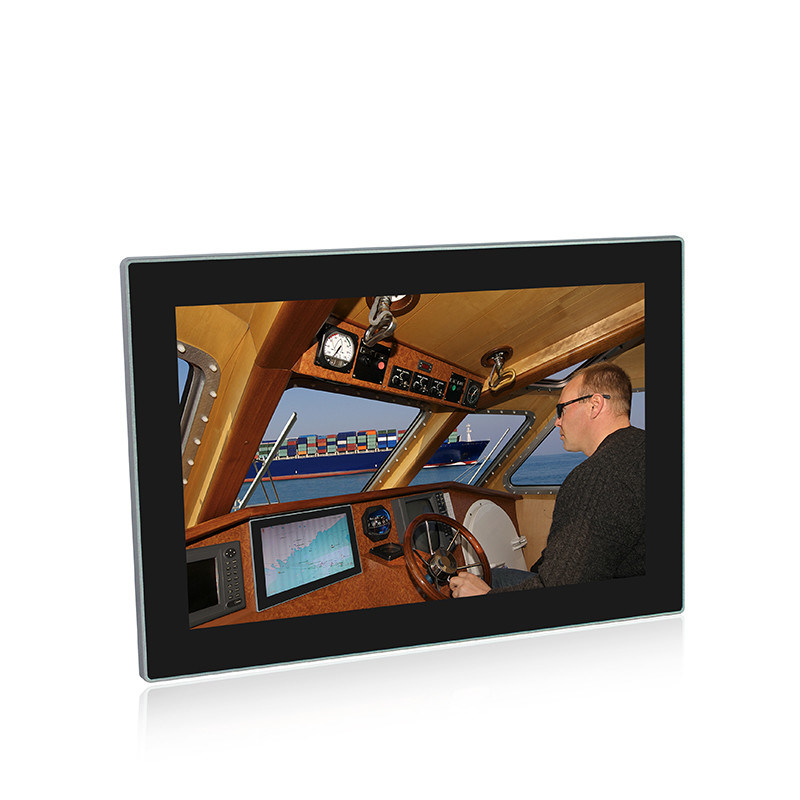

On vessel
Stereo garage
Security monitoring
Self serve kiosk
Automatic pay station machine
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
