Rugged 17 Inch HMI Panel PC TPM 2.0 RS232 RS422 RS485 9-36V voltage
17" Rugged Control HMI panel pc TPM 2.0 RS232 RS422 RS485 9~36V Feature 1. 17" TFT LED, resolution 1280 x 1024, Multi-Touch PCAP 2. Intel Celeron Quad Core J1900 2.0GHz, 17 inch industrial touchscreen panel PC 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Win7/8/10/Linux/Ubuntu 5. DC IN 9V~36V Specification PPC-J017SAC System CPU Intel Celeron Quad Core J1900 2.0GHz L2 Cache 2MB Chipsets Intel Bay Trail SOC Memory DDR3L 1333MHz 4GB, Up to 8GB Harddisk
rugged HMI Panel PC
,RS232 HMI Panel PC
,HMI rugged touch screen pc

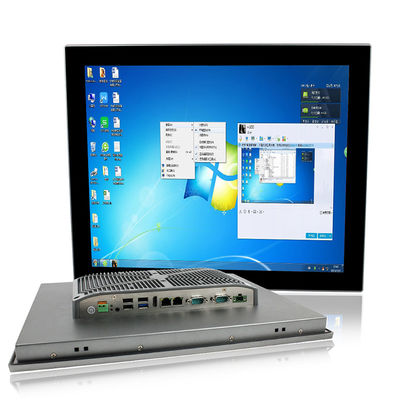

17" Rugged Control HMI panel pc TPM 2.0 RS232 RS422 RS485 9~36V
Feature
1. 17" TFT LED, resolution 1280 x 1024, Multi-Touch PCAP
2. Intel Celeron Quad Core J1900 2.0GHz, 17 inch industrial touchscreen panel PC
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC IN 9V~36V
Specification
| PPC-J017SAC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |

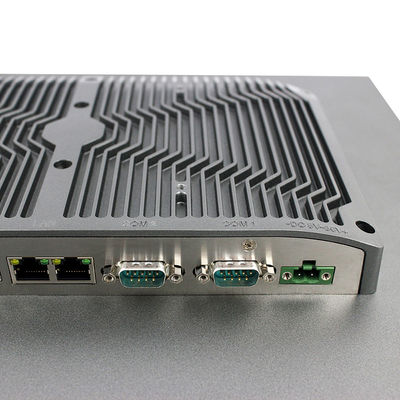

| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 17" LED |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |

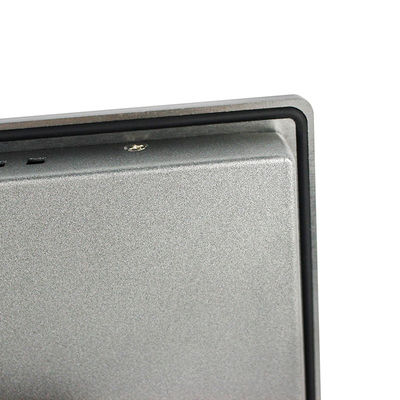

| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

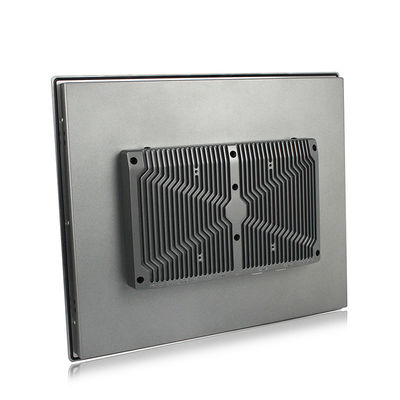

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 395 x 327 x 60 mm | |
| Cut-out Size | 381 x 313 mm | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
