Product Details:
|
| Size: | 17" | Resolution: | 1280 X 1024 |
|---|---|---|---|
| CPU: | Intel Celeron Quad Core J1900 2.0GHz | Memory: | 4GB |
| Harddisk: | 32G SSD | Touchscreen: | Resistive Touch |
| Os: | Windows7 / 8 / 10, Linux, Unix, QNX | Working Voltage: | DC 12V~24V / Optional(+9V~36V) |
| Material: | Aluminum Alloy Shell | Color: | Silver / Black ( Optional ) |
| Warranty: | 1 Year | Wifi: | Built In ( Optional ) |
| Product Name: | Device Control Panel PC,Operation Panel PC | ||
| High Light: | 1280 x 1024 Medical Panel PC,17" Medical Panel PC,TFT LED panel mount touch screen pc |
||
17" Device Control Medical Panel PC Aluminum Oem Stop / Start Switch
Feature
1. 17" TFT LED, resolution 1280 x 1024, resistive touch
2. Intel Bay trail j1900 CPU: 2.0GHz, 17" Industrial Operation
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
Specification
| DCP-J017SBR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI |
| LAN | 1 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |

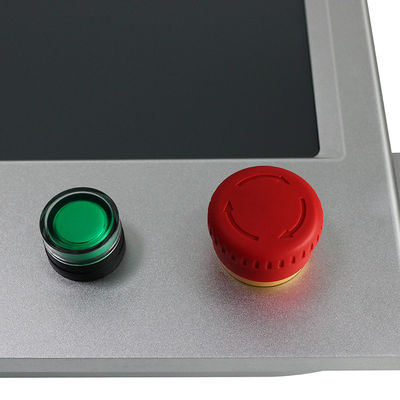

| IDEC Switch | Start / Select / Reset / Key/ Stop switch ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |

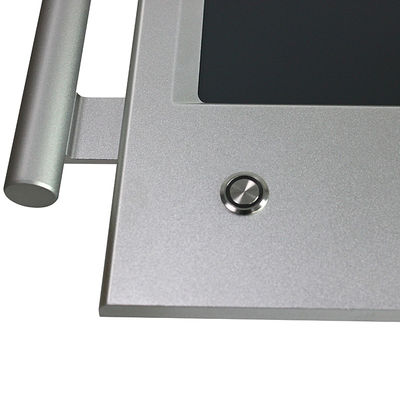

| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 17" Led |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 90% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |

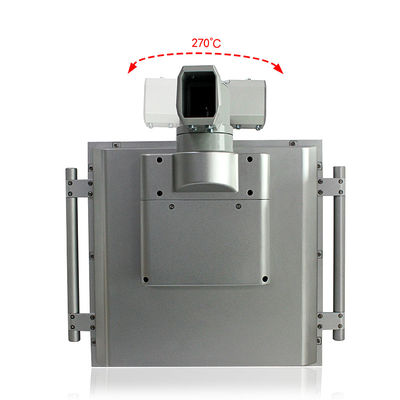

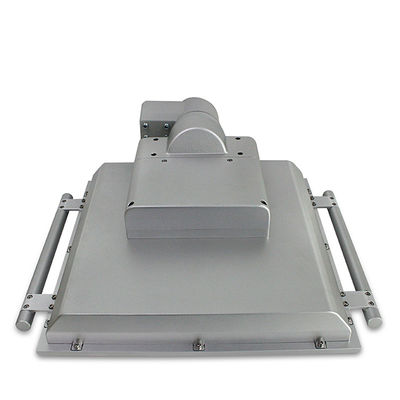

| VESA Mounting | Cantilever bracket | |
| Waterproof Rate | IP65 | |
| Product Dimension | 400 x 390 x 155 mm | |
| Cut-out Size | / | |
| Packing Size | 500 x 340 x 450 mm | |
| Gross Weight | 16.0 KG | |

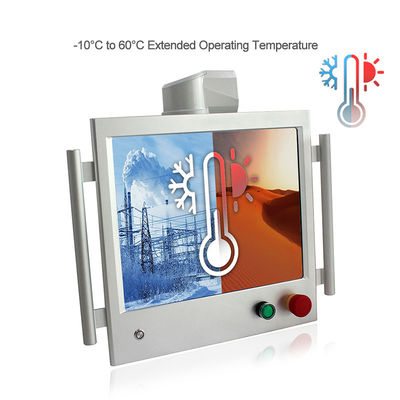

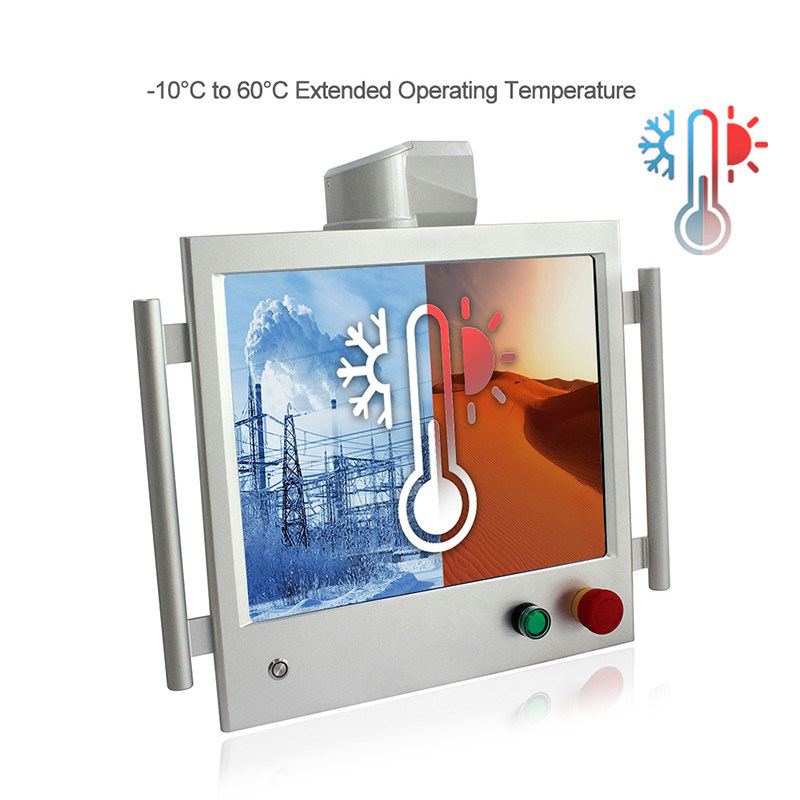

| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
