Product Details:
|
| CPU: | Intel Celeron 4305U Duad Core 2.1GHz | Memory: | 4GB/8GB/16GB |
|---|---|---|---|
| Storage: | 32G SSD/64G SSD/128G SSD | I/O: | 2*LAN, 4*COM, 8*USB |
| System: | Windows8 / 10, Linux, Unix, QNX | Material: | Aluminum Alloy Shell |
| Working Voltage: | DC 12V~24V / Optional(+9V~36V) | VESA Mounting: | 208 X 100 Mm / 208 X 60 Mm |
| Warranty: | 1 Year | Product Name: | Embedded Box PC, Industrial Mini PC,Rugged Embedded Fanless Computer |
| Products Status: | Stock | ||
| High Light: | COM 8 rugged industrial computers,LAN 4 small industrial computer,rugged small industrial computer |
||

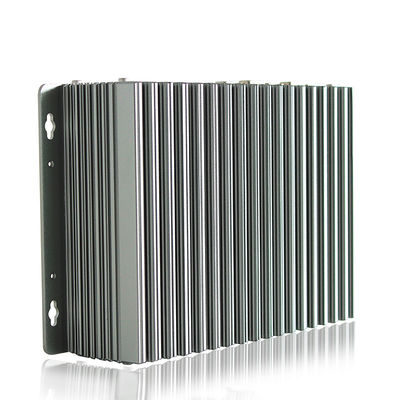

Fanless Industrial Embedded Box PC 8th CPU 2 LAN 4 COM 8 USB RS232 RS485
FEATURES
◕ Intel Celeron 4305U Duad Core 2.1GHz
◕ 1x DDR4L 2400MHz 4GB. Max up to 32GB
◕ 2x GbE supporting Wake-on-LAN and PXE
◕ 4*COM (RS232/R485 optional), 1*WiFi / Bluetooth/4G
optional
◕ Encryption onboard TPM2.0 module supported
◕ DC12V~24V Input (+9V～36V wide voltage optional)
◕ -20°C ~70°C extended operating temperature
Specification
| EFIC-1000CB | ||
| System | CPU | Intel Celeron 4305U Duad Core 2.1GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® i211A 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows8 / 10, Linux, Unix, QNX | |

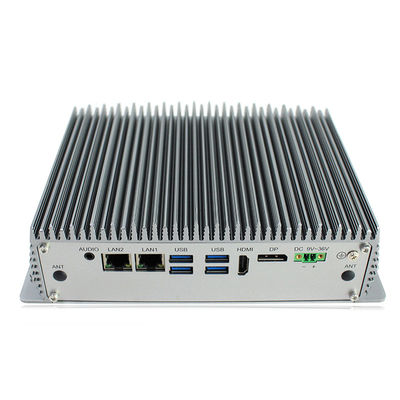

| I / O | VGA | 1 x DP / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 4 x USB2.0 / 4 x USB3.0 | |

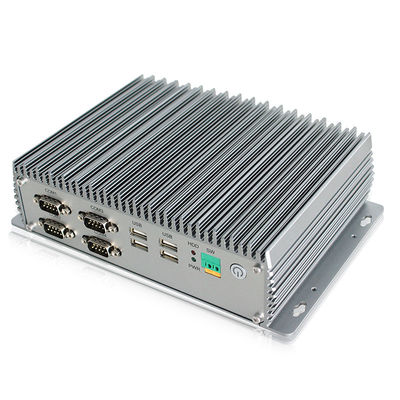

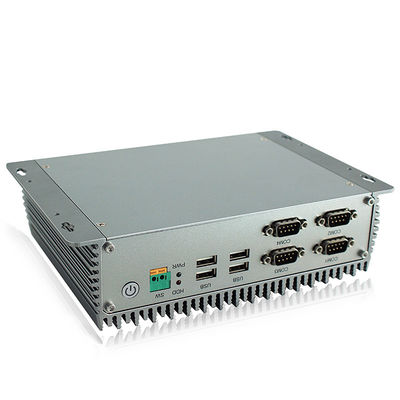

| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |

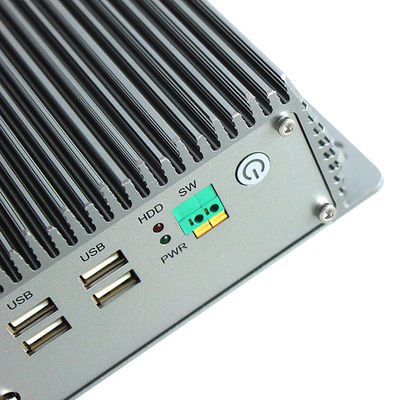

| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦15W | |
| PACKING LIST |
| 1x EFIC - 1000 Series Embedded Computer |
| 1xUtility DVD Driver |
| 1x Fixed Bracket |
| 1x Power Adaptor |
| MODELNO DESCRLPTION |
| EFIC-1000OB Compact Fanless Embedded Computer with Intel i3-8145U Processor |
| EFIC-1000PB Compact Fanless Embedded Computer with Intel i5-8265U Processor |
Application
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
