PCAP Industrial Touch Screen Monitor

PCAP Industrial Touch Screen Monitor
PCAP Industrial Touch Screen Monitor PCAP Industrial Touch Screen Monitor PCAP Industrial Touch Screen Monitor PCAP Industrial Touch Screen Monitor PCAP Industrial Touch Screen Monitor

Large Image :  PCAP Industrial Touch Screen Monitor

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: IP65 FCC CE ROHS
Model Number: PM-H015SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/carton, weight: 7kg/pc,Packing Size: 460 x 180 x 400 mm
Delivery Time: 3 working days upon receive the payment
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

PCAP Industrial Touch Screen Monitor

Description
Size: 15" Resolution: 1024 X 768

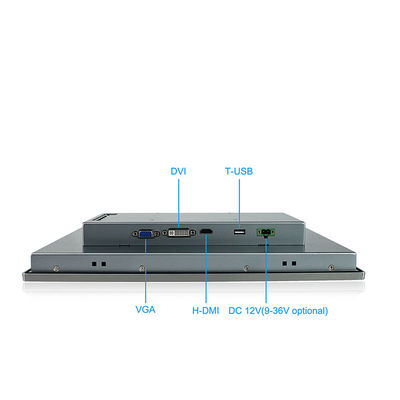

Touch Screen: Multi-Touch PCAP I/O: 1 X VGA, 1 X H-DMI, 1 X DVI, 1 X Touch USB, 1 X OSD Control Key
Cut-out Size: 347 X 271 Mm VESA: 100 X 100 Mm
Working Voltage: DC 12V / Optional(+9V~36V) Material: Stainless Steel Panel + Sheet Metal Painting Treated Back Shell
Color: Gray Warranty: 1 Year
Product Name: Industrial Display,Capacitive Touch Monitor
Highlight:

VGA industrial touch screen monitor

,

PCAP industrial touch screen monitor

15 inch Industrial Display Multi-Touch PCAP touch Screen VGA HD-MI USB

Feature
1. Aluminum alloy structure on the front panel, front panel IP65 waterproof standard
2.15 "TFT LED, resolution 1024 x 768, capacitive touch
3. The installation method: embedded installation/VESA installation
4. Support HDMI/VGA/DVI a variety of signal input
5. DC 12 v power input, optional (+ 9 v ~ 36 v) wide voltage input

Specification
PM-H015SAC
LCD PanelPanel Size15" Led
Resolution1024 x 768
Aspect Ratio4:3
Display Brightness350 cd/m2
Contrast Ratio1000:1
Colors16.7M , 74% NTSC
Backlight Lifetime50000 Hr (min.)
Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screenTouch Screen TypeMulti-Touch PCAP
Transmittance>90%
Response Time<5ms
Surface Hardness≥6H
Supply Voltage5.0V DC
Touch Life≧ 3000W
I / OVGA1 x VGA
H-DMI1 x H-DMI
DVI1 x DVI
USB1 x Touch USB
Other I/O Interface1 x OSD Control Key
InstitutionalMaterialHigh-strength Al-alloy, support IP65
ColorGray
VESA MountingVESA: 100 x 100 mm
Waterproof RateIP65
Product Dimension361 x 285 x 55 mm
Cut-out Size347 x 271 mm
Packing Size460 x 180 x 400 mm
Gross Weight7 KG
Power and EnvironmentOperating Temperature-20~70°C
Storage Temperature-30~80°C(-22~176°F)
Relative Humidity5%~95%@40°C, non-condensing
Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power SupplyAC 100 - 240V~50/60Hz,1.5A
Working VoltageDC 12V / optional(+9V~36V)




PCAP Industrial Touch Screen Monitor 0PCAP Industrial Touch Screen Monitor 1
PCAP Industrial Touch Screen Monitor 2
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
