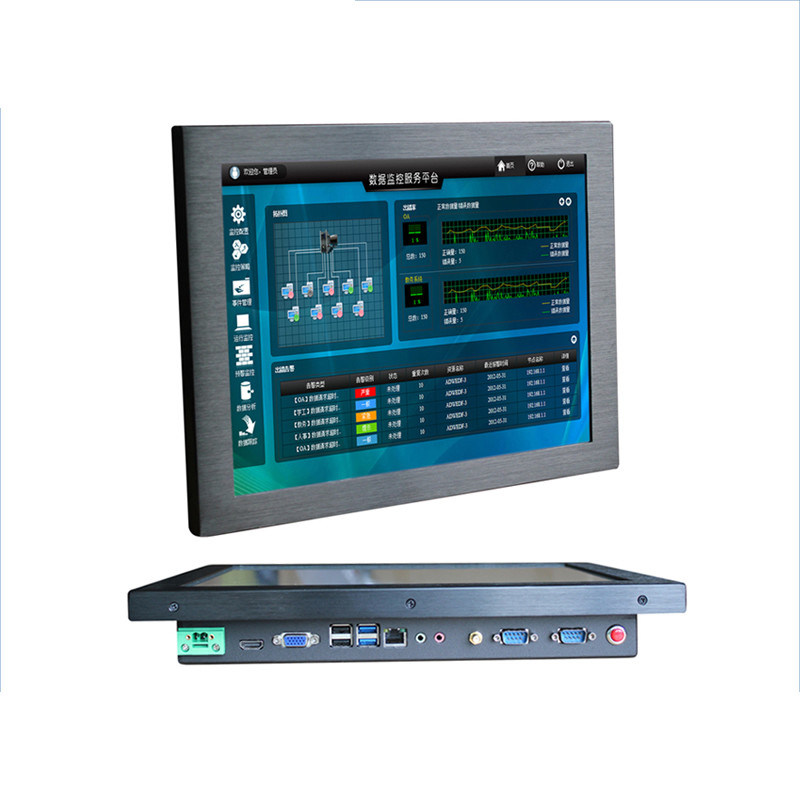

Resistive Industrial All In One Touchscreen PC
15 Inch Industrial Touch All In One PC With Resistive TouchScreen Feature 1. The whole machine aluminum structure design, the front panel drawing oxidation treatment 2.15" TFT LED, 1024 x 768 resolution, resistive touch 3. Intel Bay trail j1900: CPU 2.0 GHz fanless touch the computer 4. Flexible diversified interface optional: VGA/HDMI/LAN/USB/COM 5. Support the VESA 100 x100 and open installation Specification AIO-B015SBR System CPU Intel Celeron Quad Core J1900 2.0GHz L2
Resistive Industrial All In One Touchscreen PC
,CE Industrial All In One Touchscreen PC
Feature
1. The whole machine aluminum structure design, the front panel drawing oxidation treatment
2.15" TFT LED, 1024 x 768 resolution, resistive touch
3. Intel Bay trail j1900: CPU 2.0 GHz fanless touch the computer

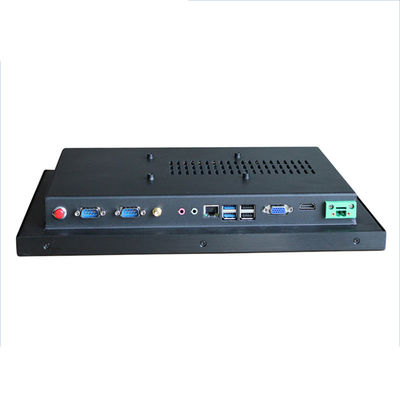

4. Flexible diversified interface optional: VGA/HDMI/LAN/USB/COM
5. Support the VESA 100 x100 and open installation
Specification
| AIO-B015SBR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / ( 128G / 240G / 480G SSD ) optional | |
| Graphics | Intel HD Graphics | |
| Network | RTL 8111F 1000 Lan | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10 / Linux | |
| I / O | HDMI | 1 x H-DMI / 1 x VGA |
| LAN | 1 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS232 | |
| Wireless Network | 1 x WiFi | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" LED |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 Wire Resistive Touch |
| Transmittance | >80% | |
| Response Time | <10ms | |
| Surface Hardness | ≥3H | |
| Touch Life | click:≥1000 | |
| Institutional | Material | Aluminum shell+Sheet metal paint treatment |
| Color | Black | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Product Dimension | 360 x 280 x 52 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~19V / Optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Ticket machine
Out fare turnstile gates
SMArt Lockers parcel locker
On vessel
Stereo garage
Security monitoring
Self serve kiosk
Automatic pay station machine
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
