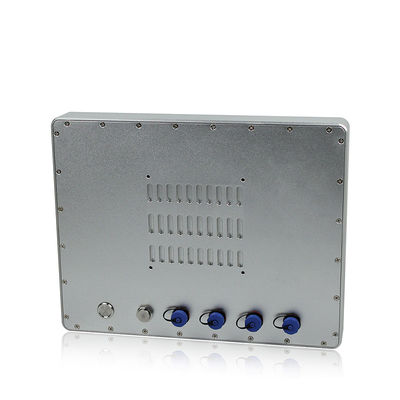

RS232 RS485 Multi Touch Panel Pc , 10 Inch Ip68 Touch Screen Desktop Computer
Product Summary
Outdoor 10 Inch Ip68 Waterproof Touch Screen Pc With RS232 / RS485 1. 10.4" TFT LED, resolution 800 * 600, resistive touch 2. Intel Bay trail j1900 CPU: 2.0GHz, full ip66 waterproof industrial pc 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Win7/8/10/Linux/Ubuntu 5. DC12V~24V Input,(+9V～36V)wide voltage input optional WPC-J010SAR System CPU Intel Celeron Quad Core J1900 2.0GHz L2 Cache 2MB Chipsets Intel Bay Trail SOC Memory DDR3L 1333MHz 4GB, Up to
Basic Properties
country of origin
Guangdong, China
Brand Name
QYT
certificate
CE, FCC, RoHS, IP68, IP69K
PRODUCT MODEL
WPC-J010SAR
Trading Properties
MOQ
1 Set
payment method
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Capacity
5000 Set/Sets per Month
Product Custom Attributes
Highlight
desktop multi touch panel pc
,10 Inch multi touch panel pc
,RS485 touch screen desktop computer
IP Rating:
IP67 / IP68 / IP69K
Led Panel:
10.4" LED
Resolution:
800 X 600
CPU:
Intel Celeron J1900 2.0GHz
Memory:
4GB/8GB ( Optional)
Harddisk:
32G SSD/64G/120G/250G ( Optional)
I/O Port:
VGA/HD-MI/LAN/USB/RS232
Touchscreen:
Resistive Touch / Capacitive
Power Input:
DC 12V~24V (9V~36V Optional)
Operating System:
Win7/8/10/Linux/Ubuntu
Product Description
Detailed Specifications & Features
Outdoor 10 Inch Ip68 Waterproof Touch Screen Pc With RS232 / RS485
1. 10.4" TFT LED, resolution 800 * 600, resistive touch
2. Intel Bay trail j1900 CPU: 2.0GHz, full ip66 waterproof industrial pc
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
| WPC-J010SAR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 500:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70 / 70 / 60 / 70 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 4 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 75 x 75 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 265 x 210 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
