Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP66, IP69K
Model Number: WPC-M012WCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-7 Work Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

Wall Mounted Touchscreen Desktop Computer , Linux RJ45 Waterproof Touch Screen Pc

Description
IP Rating: IP69K Panel Size: 12.1" Led
Resolution: 1280 X 800 CPU: Intel Celeron Dual Core 3855U 1.6GHz
RAM: 4GB, Up To 8GB Harddisk: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
I/O Port: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

desktop waterproof touch screen pc

,

linux waterproof touch screen pc

,

RJ45 touchscreen desktop computer

Waterproof ip69k stainless steel panel pc capacitive touch for food industry



Features

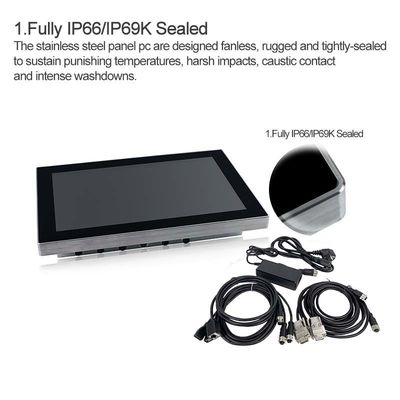

This waterproof industrial panel PC is made of complete stainless steel, which is anti-rust and anti-corrosion. Fully sealed waterproof IP69K with various waterproof IO Cables included. It's the best choice for wet locations such as food processing line, car washing shop, agricultural industry, etc.



1.12.1" TFT LED, resolution 1280*800, capacitive touch



2. Intel Celeron Dual Core 3855U 1.6GHz, ip65 / ip66 / ip69k touch computer

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

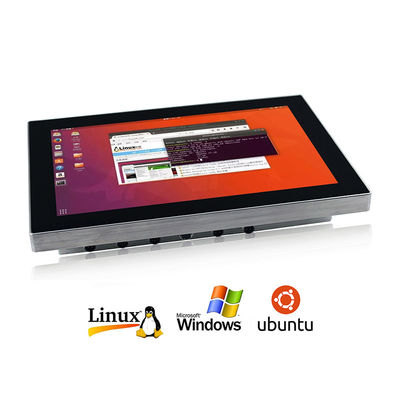

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC12V~24V Input,(+9V~36V)wide voltage input optional

WPC-M012WCC
System CPU Intel Celeron Dual Core 3855U 1.6GHz
L2 Cache 2MB
Chipsets Intel Skylake-U SOC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 510
Network Intel® i211 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O VGA 1 x VGA / 1 x HD-MI ( Optional )
LAN 2 x LAN ( Optional )
USB 4 x USB ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 12.1" Led
Resolution 1280 x 800
Aspect Ratio 16:10
Display Brightness 450 cd/m2
Contrast Ratio 700:1
Colors 16.7M , 76% NTSC
Response Time 50000 Hr (min.)
Viewing Angle 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type 10 point capacitive touch
Transmittance >90%
Response Time <5ms
Surface Hardness ≥6H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material Stainless Steel SUS04
Color Polished brushed surface
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP66 / IP69K
Product Dimension 312 x 214 x 55 mm
Cut-out Size /
Packing Size 450 x 170 x 350 mm
Gross Weight 7.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦25W

Wall Mounted Touchscreen Desktop Computer , Linux RJ45 Waterproof Touch Screen Pc 0Wall Mounted Touchscreen Desktop Computer , Linux RJ45 Waterproof Touch Screen Pc 1Wall Mounted Touchscreen Desktop Computer , Linux RJ45 Waterproof Touch Screen Pc 2



Packing List



1x WPC-M012WCC Stainless Steel Panel PC

1x Utility DVD Driver

1x Power Adaptor



FAQ

1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?

A: 3 business days for samples order, 15 business days for mass production.
