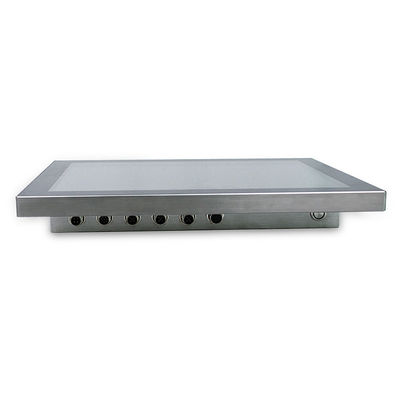

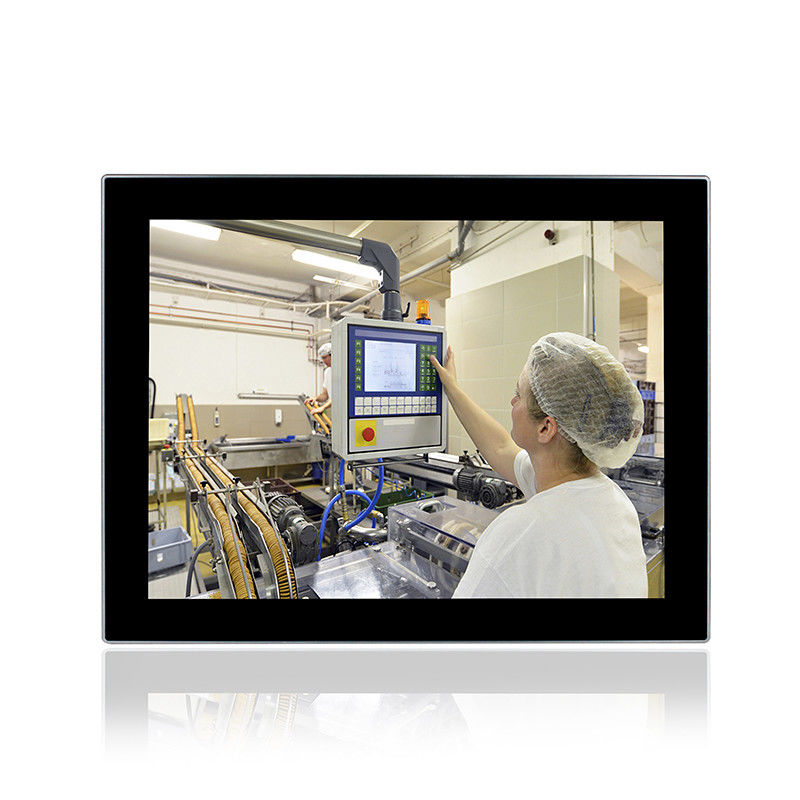

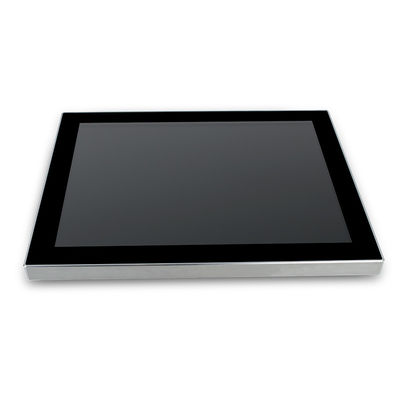

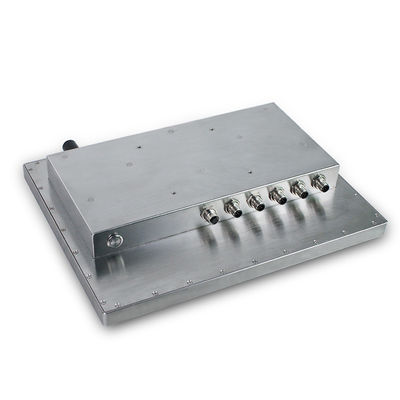

M12 Connectors Stainless Steel Panel PC
Rugged ip66 multi touch stainless steel waterproof panel pc with M12 connectors Features This stainless steel waterproof PC, fanless, strong and tightly-sealed, suitable for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications. 1. 15" TFT LED with capacitive touch 2. Intel Celeron Quad Core J1900 2.0GHz 3. 1x DDR3L 1333MHz 4GB. Max up to 16GB 4. M12 I/O Connectors optional
M12 Connectors Stainless Steel Panel PC
,FCC Stainless Steel Panel PC
Rugged ip66 multi touch stainless steel waterproof panel pc with M12 connectors
Features
This stainless steel waterproof PC, fanless, strong and tightly-sealed, suitable for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
1. 15" TFT LED with capacitive touch
2. Intel Celeron Quad Core J1900 2.0GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 16GB

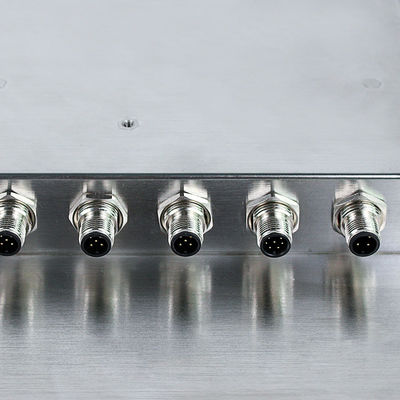

4. M12 I/O Connectors optional: HDMI/LAN/USB/COM
5. Full system IP66/IP69K with Stainless Steel SUS304 construction
6. DC12V~24V Input (+9V～36V wide voltage optional)
7. -20°C ~ 70°C extended operating temperature
8. VESA Mounting: 100 x 100 mm
9. 5. 1000nits sunlight readable optional
| WPC-J015SCC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 3 x USB2.0 / 1 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" Led |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 72% NTSC | |
| Response Time | 30 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS04 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 360 x 284 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 9.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Packing List
1x WPC-J015SCC Stainless Steel Panel PC
M12 Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
