Product Details:
|
Waterproof Rating: | IP69K | Panel Size: | 15" Led |
---|---|---|---|
Resolution: | 1024 X 768 | CPU: | Intel Core I5-6200U Dual Core 2.5GHz |
Memory: | 4GB, Up To 16GB | HDD: | 32G / 64G / 128G / 250G / 500G SSD Optional |
I/O: | VGA/HD-MI/LAN/USB/RS232/RS485 | Touchscreen Panel: | Capacitive Touch / Resistive Touch |
Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
High Light: | 6200u industrial panel pc,Inox industrial panel pc,15inch windows pc touch screen |
Features

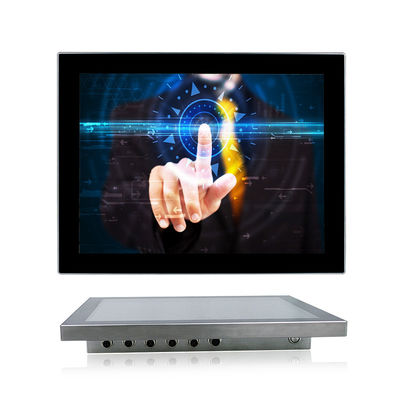

This is a stainless steel waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts, caustic contact and intense equipment washdowns.
1.15" TFT LED, resolution 1024*768
2. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference.
WPC-P015SCC | ||
System | CPU | Intel Core i5-6200U Dual Core 2.5GHz |
L2 Cache | 3MB | |
Chipsets | Intel 6th Skylake-U SOC | |
Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 520 | |
Network | Intel® i211 1000 Mbps port | |
Audio | Realtek ACL662 Audio controller | |
Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |

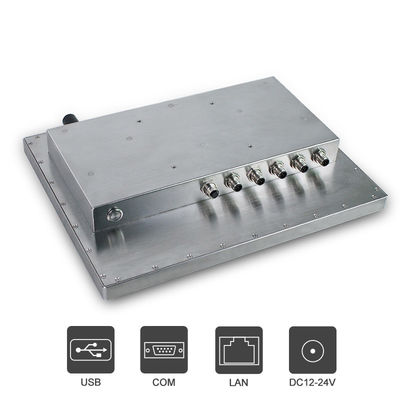

I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
LAN | 2 x LAN ( Optional ) | |
USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
COM | 2 x RS232 ( Optional ) | |
Wireless Network | WiFi + Bluetooth ( Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 15" Led |
Resolution | 1024 x 768 | |
Aspect Ratio | 4:3 | |
Display Brightness | 350 cd/m2 | |
Contrast Ratio | 1000:1 | |
Colors | 16.7M , 72% NTSC | |
Response Time | 30 (Typ.)(Tr+Td) ms | |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | 10 point capacitive touch |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥6H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | Stainless Steel SUS04 |
Color | Polished brushed surface | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP66 / IP69K | |
Product Dimension | 360 x 284 x 55 mm | |
Cut-out Size | / | |
Packing Size | 460 x 180 x 400 mm | |
Gross Weight | 9.0 KG | |
Power and Environment | Operating Temperature | -10~60°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC 12V~24V / optional(+9V~36V) | |
Power Consumption | ≦30W |
Packing List
WPC-P015SCC Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V~36V wide voltage input
