Product Details:
|
| Waterproof Rating: | IP68 / IP69K | Size: | 15.6" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | Processor: | Intel Core I3-6100U Dual Core 2.4GHz |
| Memory: | 4GB, Up To 16GB | HDD: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/RS232/RS485 | Touchscreen Panel: | Resistive / Capacitive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | Desktop IP67 Panel PC,RoHS IP67 Panel PC,IP67 panel mount touch screen pc |
||
Feature

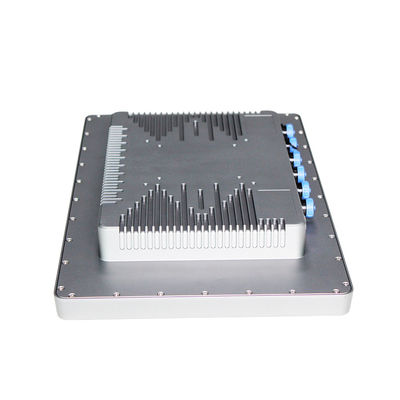

This is a Aluminum Alloy IP68 waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.
1. 15.6" TFT LED, whole pc IP67/ IP68/IP69K waterproof
2. Resolution 1920*1080
3. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
4. Intel Core i3-6100U Dual Core 2.4GHz
5. Multi I/O Interface optional, VGA/HDMI/LAN/USB/RS232
6. DC12V~24V Input,(+9V～36V)wide voltage input optional
7. Fully sealed and fanless design, full IP65 waterproof, Sealed I/O with cable set included.
| WPC-O156WBR | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15.6" Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 600 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 16.7M , 76% NTSC | |
| Response Time | 30 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 65 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 398 x 247 x 52 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.
4. Heat sink in back case great for heat dissipation and beatiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
Packing List
WPC-O156WBR Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
