Product Details:
|
| IP Rating: | IP66 / IP69K | Size: | 15.6" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron Dual Core 3855U 1.6GHz |
| RAM: | DDR3L 1333MHz 4GB, Up To 8GB | Harddisk: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O: | VGA/HD-MI/LAN/USB/COM | Touchscreen Panel: | Capacitive Touch / Resistive Touch |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | HDMI stainless steel panel pc,IP66 stainless steel panel pc,stainless steel fanless medical computer |
||
Features

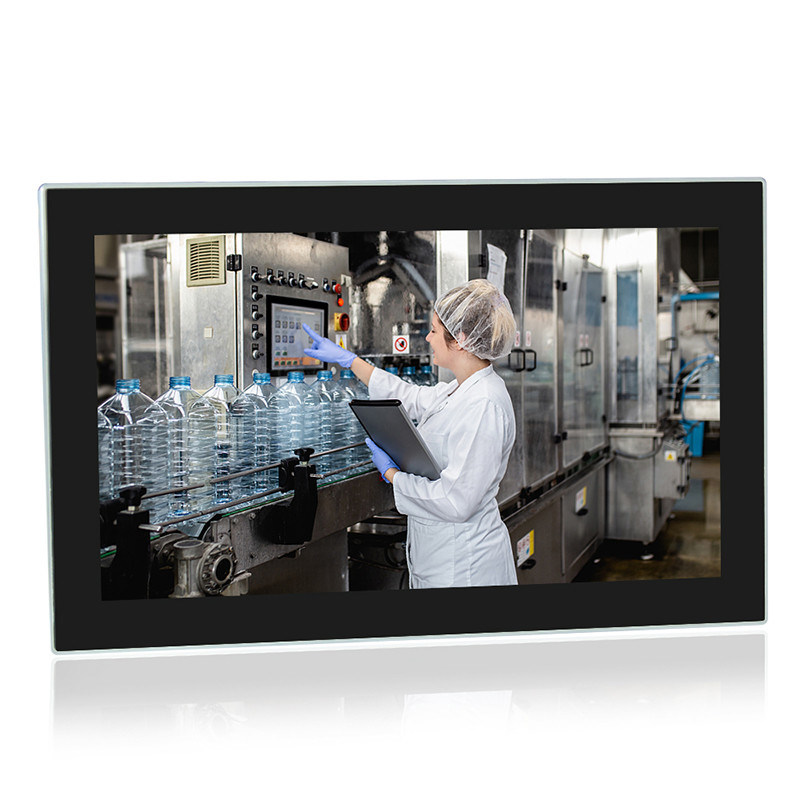

The inox PC is particularly suitable for applications in food & beverage, chemical and pharmaceutical markets. The stainless-steel chassis and a true flat frontal with Multitouch Projected Capacitive touchscreen, assure protection from dirt, water, scratches and an intensive use by the operator, even in the harshest areas.
1. 15.6" TFT LED with resistive / capacitive touch
2. Intel Celeron Quad Core J1900 2.0GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 16GB
4. M12 I/O Connectors optional:HDMI/LAN/USB/COM
5. Full system IP66/IP69K with Stainless Steel SUS304 construction
6. DC12V~24V Input (+9V～36V wide voltage optional)
7. -20°C ~ 70°C extended operating temperature
| WPC-M156WCC | ||
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 510 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15.6" Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 600 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 16.7M , 76% NTSC | |
| Response Time | 30 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 65 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS04 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 399 x 249 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 9.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
