Product Details:
|
| IP Rate: | IP66 / IP69K | Panel Size: | 15.6" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I3-6100U Dual Core 2.4GHz |
| RAM: | DDR4L 2133MHz 4GB, Up To 16GB | Harddisk: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen Panel: | Capacitive Touch / Resistive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | 15.6" all in one touch screen,Rugged Stainless Steel Panel PC,Tough Stainless Steel Panel PC |
||
Features
The Stainless Panel PC Line are industrial-grade systems designed to perform in critical environments that call for a greater level of resistance to corrosion such as found in pharmaceutical, chemical or food factories.
1.15.6" TFT LED, resolution 1920*1080
2. 10 points capacitive touch screen, high precision, durable, anti-interference.
| WPC-O156WCC | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15.6" Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 600 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 16.7M , 76% NTSC | |
| Response Time | 30 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 65 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS04 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 399 x 249 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 9.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Packing List

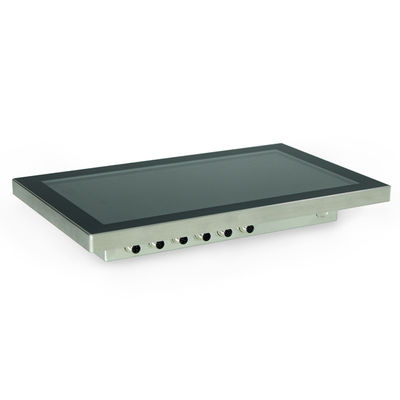

WPC-O156WCC Stainless Steel Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
