OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment

OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment
OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment

Large Image :  OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP68, IP69K
Model Number: WPC-M017SAR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-7 Business Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment

Description
IP Rating: IP68 / IP69K Size: 17" Led
Resolution: 1280 X 1024 Processor: Intel Celeron Dual Core 3855U 1.6GHz
RAM: DDR4L 2133MHz 4GB, Up To 16GB HDD: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/RS232 Touchscreen Panel Panel: Resistive Touch / Capacitive Touch Optional
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

OEM Waterproof Touch Screen PC

,

linux Waterproof Touch Screen PC

,

IP68 linux panel pc

OEM IP68 full sealed touch screen waterproof pc wall mounting for harsh environment

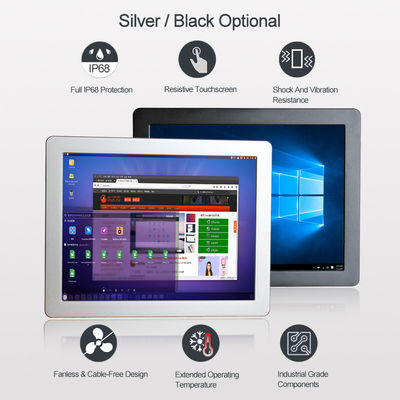

Feature
This is a Aluminum Alloy IP68 waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.


1.17" TFT LED, resolution 1280 * 1024

2. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference


3. Intel Celeron Dual Core 3855U 1.6GHz

4. I/O Interface optional: VGA/HD-MI/LAN/USB/COM

5. Operating System: Win7/8/10/Linux/Ubuntu

6. DC12V~24V Input

7. VESA Mounting: 100 x 100 mm

WPC-M017SAR
SystemCPUIntel Celeron Dual Core 3855U 1.6GHz
L2 Cache2MB
ChipsetsIntel Skylake-U SOC
MemoryDDR4L 2133MHz 4GB, Up to 16GB
Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
GraphicsIntel HD Graphics 510
NetworkIntel® i211 1000 Mbps port
AudioRealtek ACL662 Audio controller
Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX

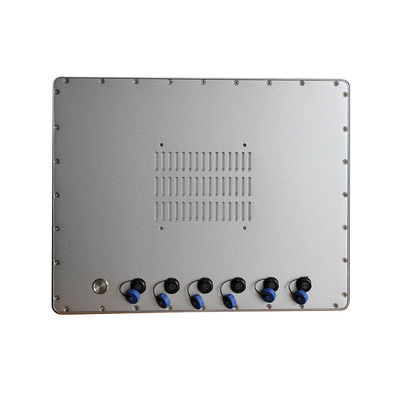

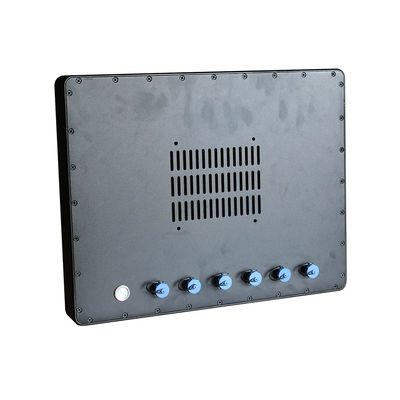

I / OVGA1 x VGA / 1 x HD-MI ( Optional )
LAN1 x LAN ( Optional )
USB2 x USB2.0 / 2 x USB3.0 ( Optional )
COM2 x RS232 ( Optional )
Wireless NetworkWiFi + Bluetooth ( Optional )
Other I/O Interface1 x Power Switch
LCD PanelPanel Size17" Led
Resolution1280 x 1024
Aspect Ratio4:3
Display Brightness400 cd/m2
Contrast Ratio1000:1
Colors16.7M , 90% NTSC
Response Time30 (Typ.)(Tr+Td) ms
Viewing Angle88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screenTouch Screen Type5 wire resistive touch
Transmittance>85%
Response Time<5ms
Surface Hardness≥3H
Supply Voltage5.0V DC
Touch Life≧ 1000W
InstitutionalMaterialAluminum Alloy Shell
ColorSilver / Black ( optional )
VESA MountingVESA: 100 x 100 mm
Waterproof RateIP67 / IP68 / IP69K
Product Dimension395 x 327 x 42 mm
Cut-out Size/
Packing Size500 x 180 x 450 mm
Gross Weight8.0 KG
Power and EnvironmentOperating Temperature-10~60°C
Storage Temperature-20~80°C(-22~176°F)
Relative Humidity5%~95%@40°C, non-condensing
Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power SupplyAC 100 - 240V~50/60Hz,1.5A
Working VoltageDC 12V~24V / optional(+9V~36V)
Power Consumption≦30W


OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment 0OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment 1OEM Linux IP68 Waterproof Touch Screen PC Wall Mounting For Harsh Environment 2


Packing List

WPC-M017SAR Waterproof Panel PC



Waterproof VGA/RS232/LAN/USB/COM cable



1x Utility DVD Driver


1x Power Adaptor

Applications

Industrial automation

human Machine Interface

Marine control system

welding industry

supervisory control

numerical control device




Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.

2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.

3. Customization functions
It offers rich of interface to meet csutomers needs.

4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
