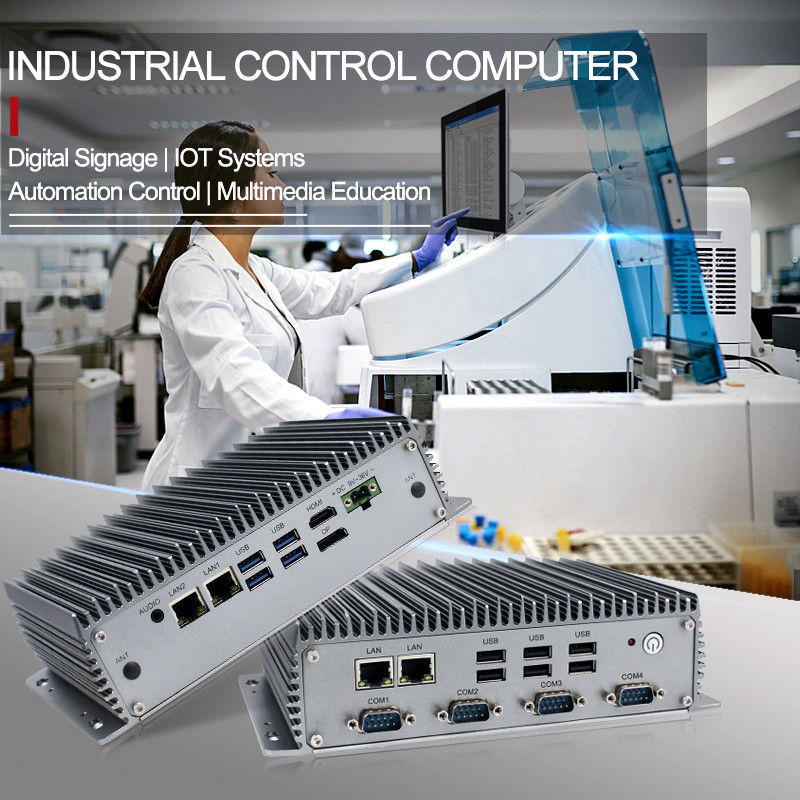

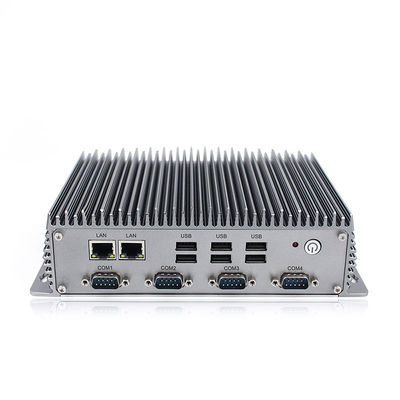

I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade

I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade
I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade

Large Image :  I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: FCC CE ROHS
Model Number: EFIC-1000PC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/carton, weight: 4kg/pc,Packing Size:360 x 180 x 320 mm
Delivery Time: 3-7 working days upon receive the payment
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade

Description
CPU: Intel Core I5-8265U Quad Core 1.6GHz Memory: DDR4L 2400MHz 4GB, Up To 32GB
Harddisk: 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional Graphics: Intel HD Graphics 620
Chipsets: Intel 8th Skylake-U SOC Stock: Yes
Warranty: 1 Year System: Windows 8 / 10, Linux, Unix, QNX
LAN: 4 X LAN USB: 6 X USB2.0 / 4 X USB3.0
COM: 4 X RS232
High Light:

32GB industrial control computer

,

HMI industrial control computer

,

I58265U mini pc industrial grade

Industrial Mini Computer I5-8265U HMI Medical KIOSK Factory Automation



Feature

Ports:
1 x DP / 1 x HD-MI
4 x LAN
6 x USB2.0 / 4 x USB3.0
4 x RS232
Wireless Network WiFi + Bluetooth ( Optional )
I/O Interface
1 x Power Switch



Applications:
factory automation
machine vision
military and defense
motion control
digital surveillance



Specification

EFIC-1000PC
System CPU Intel Core i5-8265U Quad core 1.6GHz
L2 Cache 6MB
Chipsets Intel 8th Skylake-U SOC
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® i211A 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows 8 / 10, Linux, Unix, QNX
I / O VGA 1 x DP / 1 x HD-MI
LAN 4 x LAN
USB 6 x USB2.0 / 4 x USB3.0
COM 4 x RS232
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Institutional Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
VESA Mounting 208 x 100 mm / 208 x 60 mm
Product Dimension 220 x 145 x 62 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 9V~36V
Power Consumption ≦20W



I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade 0I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade 1

I58265U Industrial Control Computer , 32GB HMI Medical KIOSK Mini Pc Industrial Grade 2





FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
