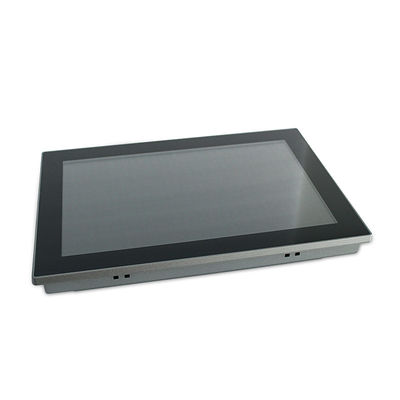

Aluminum Alloy 12 Inch Android Touch Panel PC 2G DDR3 Memory
12" Android Industrial Panel Pc Aluminum Alloy Material Front Panel IP65 Feature 1. 12.1" TFT LED, resolution 1280 x 800, Multi-Touch PCAP 2. ARM RK3288 Cortex-A17 1.8G, pc industriale ip65 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Android 5. DC12V Input,(+9V～36V)wide voltage input optional Specification PPC-R012WAC System CPU ARM RK3288 Cortex-A17 1.8 GHz Memory 2G DDR3 Storage EMMC 8G(16G Optional) GPU ARM Mali-T764 Lan RTL 8211E 1000 Lan Audio
Aluminum Alloy Android Touch Panel PC
,DDR3 Android Touch Panel PC
,12 Inch touch screen computer monitor
Feature
1. 12.1" TFT LED, resolution 1280 x 800, Multi-Touch PCAP
2. ARM RK3288 Cortex-A17 1.8G, pc industriale ip65
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Android
5. DC12V Input,(+9V～36V)wide voltage input optional
Specification
| PPC-R012WAC | ||
| System | CPU | ARM RK3288 Cortex-A17 1.8 GHz |
| Memory | 2G DDR3 | |
| Storage | EMMC 8G(16G Optional) | |
| GPU | ARM Mali-T764 | |
| Lan | RTL 8211E 1000 Lan | |
| Audio | RTL ALC662 | |
| Operation System | Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04 | |
| I / O | H-DMI | 1 x H-DMI |
| LAN | 1 x LAN | |
| USB | 4 x USB 2.0 | |
| COM | 2 x RS232 | |
| Audio | 1 x AUDIO | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 314 x 216 x 58 mm | |
| Cut-out Size | 300 x 203 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
| Power Consumption | ≦20W | |
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
