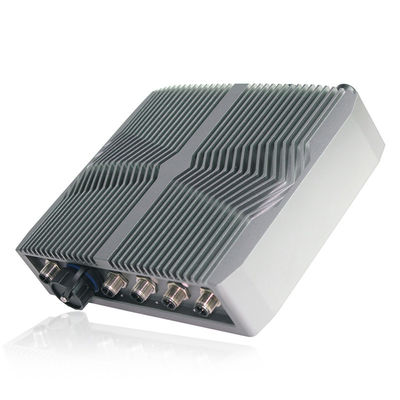

Fanless IP69K Industrial Embedded Computer , Aluminium Alloy 8th Rugged Mini Pc
Rugged Waterproof Industrial Mini Pc Fanless IP69K Aluminium Alloy 8th The Edge Computers combine with fanless design and IP66/IP67 /IP69K rating, which expand the limitation of hardware to environment where the normal embedded computer are not suitable to be used Features: 1. Aluminium alloy shell, whole pc IP66/ IP67/IP69K waterproof 2. Intel Celeron 4305U 2.1GHz, fanless industrial computer 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Win7/8/10
Fanless industrial embedded computer
,8th industrial embedded computer
,IP69K rugged mini pc
Rugged Waterproof Industrial Mini Pc Fanless IP69K Aluminium Alloy 8th
The Edge Computers combine with fanless design and IP66/IP67 /IP69K rating, which expand the limitation of hardware to environment where the normal embedded computer are not suitable to be used
Features:
1. Aluminium alloy shell, whole pc IP66/ IP67/IP69K waterproof
2. Intel Celeron 4305U 2.1GHz, fanless industrial computer
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
Application
Factory automation
Self service equipment
Paying kiosk
cnc plasma machine
car testing mechine
Multi-Product Dispensing Machine
Specification
| EFIC-6000CA | ||
| System | CPU | Intel Celeron 4305U Duad Core 2.1GHz |
| L3 Cache | 2MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® i211A 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP67 / IP69K | |
| Product Dimension | 220 x 180 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
