Product Details:
|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Waterproof Rate: | IP66 / IP67 / IP69K |
|---|---|---|---|
| Memory: | 4GB/8GB/16GB | Storage: | 32G SSD/64G SSD/128G SSD |
| Material: | Aluminum Alloy Shell | Storage Temperature: | -20~80°C(-22~176°F) |
| VESA: | 100 X 100 Mm | Products Status: | Stock |
| Ports: | VGA/HDMI/USB/LAN/RS232 Optional | Working Voltage: | DC 9V~36V |
| High Light: | IP67 Industrial Embedded Box PC,I3-8145U Industrial Embedded Box PC,Waterproof industrial micro pc |
||

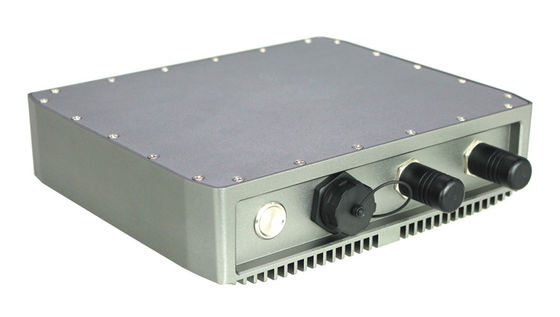

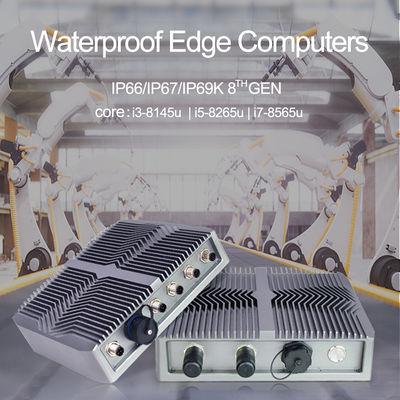

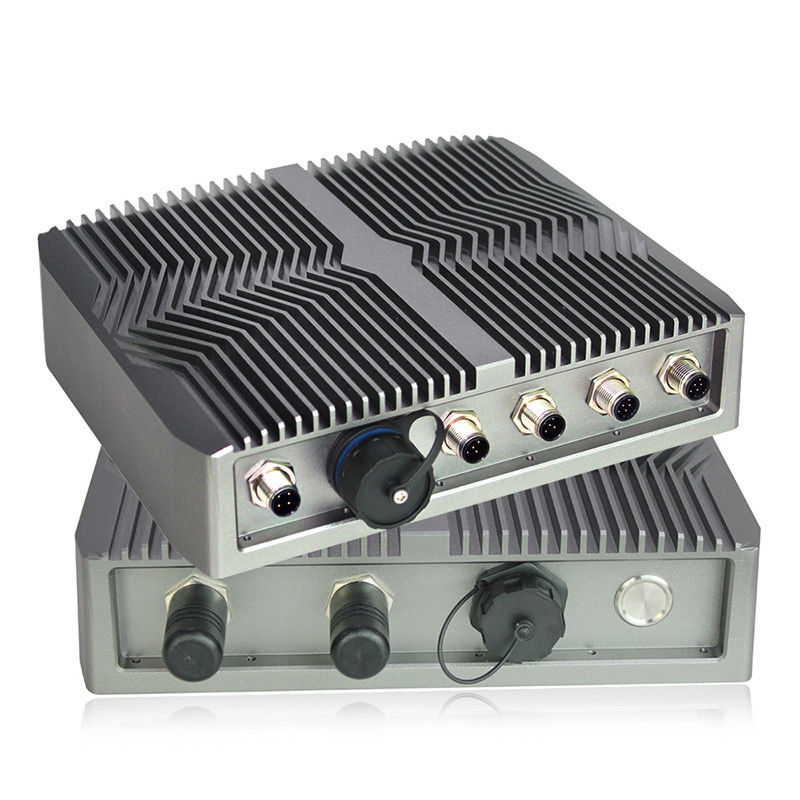

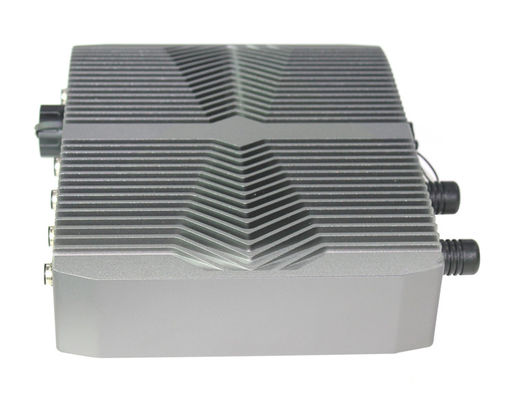

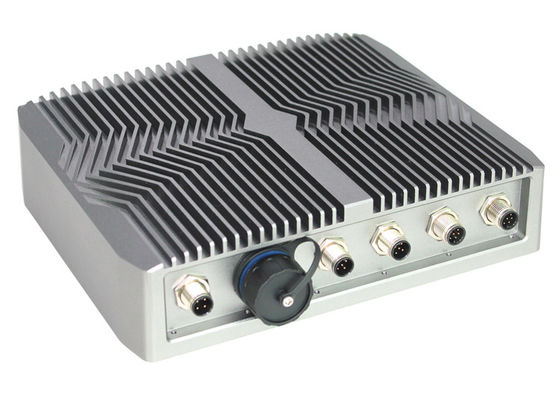

Full Waterproof IP67 Industrial Micro Pc With I3-8145U food and beverage
The edge computers are a great solution for food and beverage processing, outdoor digital signage, surveillance, military & defense, and automation control where the computers are in constant threat of water splash from all directions to even water immersion
Features:
1. Aluminium alloy shell, whole pc IP66/ IP67/IP69K waterproof
Application
Parking lot manage system
Charger station
Petroleum dispenser machine
Accesse control system
Marine environment
Industrial automatic machine
Specification
| EFIC-6000OA | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® i211A 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 1 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP67 / IP69K | |
| Product Dimension | 220 x 180 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
