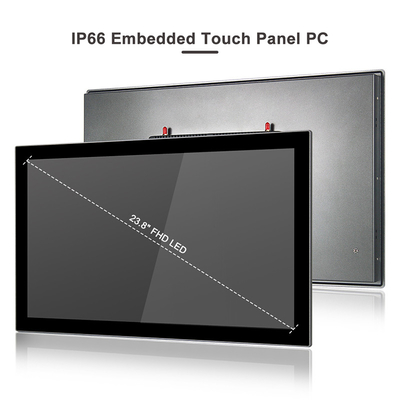

Fanless Industrial Touch Panel PC Dual Lan PC Vesa Mount 24" 1920 X 1080
Fanless Industrial Touch Panel PC Dual Lan Pc Vesa Mount 24" 1920 X 1080 1. Aluminum alloy front panel, front panel IP65 waterproof standard. 2. 24 "TFT LED, resolution 1920 x 1080, capacitive touch. 3. Intel j1900: CPU 2.0 GHz silent fanless industrial touch panel pc. 4. Two Gigabit network ports, two RS232/422/485 serial ports, 8KV static electricity and 600W TVS surge protection. 5. Onboard TPM2.0 modules provide maximum hardware security. 6. Wide voltage DC 9V~36V, with
Fanless Industrial Touch Panel PC 1920 X 1080
,Vesa Mount 24" Touch Panel PC
,Dual Lan Industrial Touch Panel PC
Fanless Industrial Touch Panel PC Dual Lan Pc Vesa Mount 24" 1920 X 1080
1. Aluminum alloy front panel, front panel IP65 waterproof standard.
2. 24 "TFT LED, resolution 1920 x 1080, capacitive touch.
3. Intel j1900: CPU 2.0 GHz silent fanless industrial touch panel pc.
4. Two Gigabit network ports, two RS232/422/485 serial ports, 8KV static electricity and 600W TVS surge protection.
5. Onboard TPM2.0 modules provide maximum hardware security.
6. Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse connection protection.
Industrial touch panel pc application:
1. Industrial site can be embedded in the machine, cabinet or placed on the operating table, do man-machine display operation interface.
2. used in telecommunication, electric power, multimedia, national defense, automation equipment, manufacturing and other fields. It is used as man-machine interface, thin client, PLC and POS communication and control terminal.
| PPC-J024WAC | |
| System | |
| CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional |
| Graphics | Intel HD Graphics |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian |
| I / O | |
| Display | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB2.0 / 1 x USB3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 24" FHD LED |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 30000 Hr (min.) |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy, support IP65 |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 |
| Product Dimension | 594 x 377 x 60 mm |
| Cut-out Size | 577 x 359 mm |
| Packing Size | 730 x 200 x 530 mm |
| Gross Weight | 16 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
Advantage for industrial touch panel pc:
1. Fully enclosed design, the whole PC is dustproof.
2. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
5. TPM2.0, 9V-36V wide voltage, power-off protection.
6. High performance motherboard, 7x24 continuous operation.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
2. How long is the delivery time?
Fast delivery within a week.
3. What certification have passed?
We have passed CE, ROHS, FCC, IP68, IP69K
4. How about the warranty ?
We have 1 years warranty and lifelong maintenance
