Product Details:
|
| IP Rating: | IP69K | Size: | 19" Led |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Processor: | Intel Celeron Dual Core 3855U 1.6GHz |
| Memory: | 4GB, Up To 16GB | Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive / Resistive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | Dust Proof HMI Panel PC,Industrial 4.0 HMI Panel PC,HMI industrial panel mount pc |
||
Feature
The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.

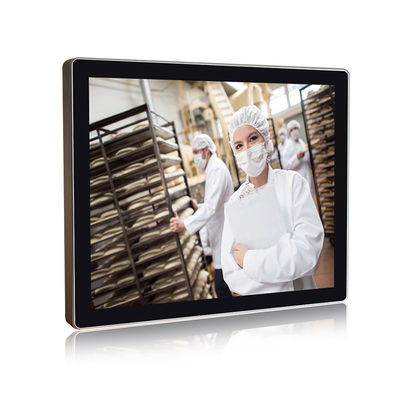

1. 19" TFT LED with 10 point capacitive touch
2. Intel Celeron Dual Core 3855U 1.6GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 8GB
4. Multi ports optional:HDMI/LAN/USB/COM
5. Full system IP66/IP69K with Aluminum Alloy Shell
6. DC12V~24V Input (+9V～36V wide voltage optional)
7. -20°C ~ 70°C extended operating temperature
| WPC-M019SWAC | ||
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 510 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 19" Led |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 90% NTSC | |
| Response Time | 7/3 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 427 x 352 x 40 mm | |
| Cut-out Size | / | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Product Advantage

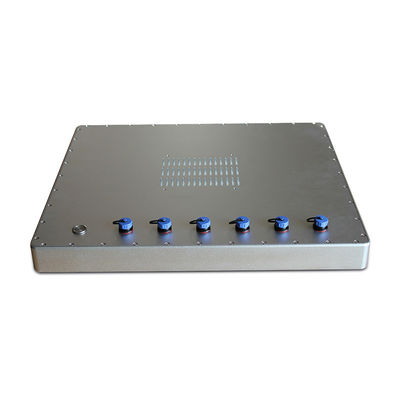

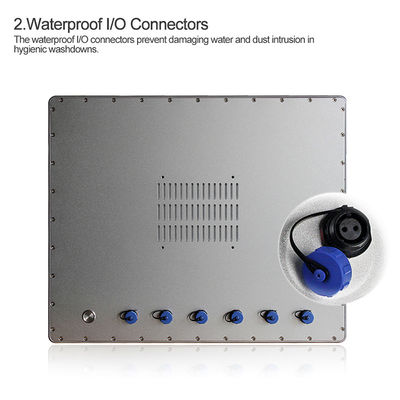

1. Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

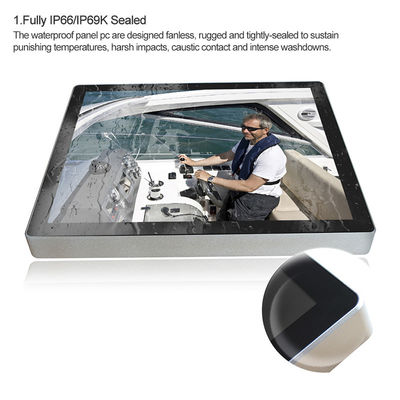

2. Full IP66/69K sealed to providing 360 degree protection
3. Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
4. Flexible, reliable, and rugged for open platform HMI/SCADA
5. Provides improved power efficiency and reduced consumption
6. CE, FCC, RoHS, IP69K Compliance
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
