I3-6100U 19 Inch Led Ip69k Fanless Industrial Touch Panel Pc For IoT
19 inch full waterproof outdoor ip69k touch screen panel pc for IoT & Industrial Applications Feature This is a Aluminum Alloy IP69K waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns. 1. 19" TFT LED with 10 point capacitive touch 2. Intel Core i3-6100U Dual Core 2.4GHz 3. High performance motherboard, fanless design, 7x24 continuous operation 4. Windows-based with integrated CPU, RAM, storage,
Ip69k industrial touch panel pc
,IoT fanless industrial touch panel pc
,i3-6100U industrial touch pc
19 inch full waterproof outdoor ip69k touch screen panel pc for IoT & Industrial Applications
Feature

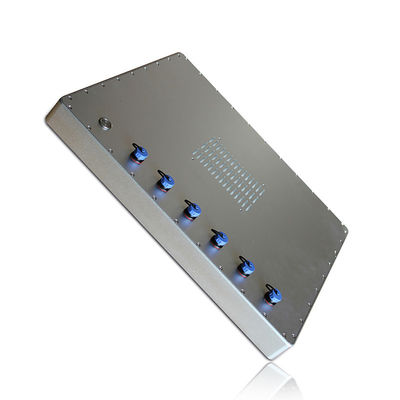

This is a Aluminum Alloy IP69K waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.
1. 19" TFT LED with 10 point capacitive touch
2. Intel Core i3-6100U Dual Core 2.4GHz
3. High performance motherboard, fanless design, 7x24 continuous operation
4. Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
5. VESA Mounting: 100 x 100 mm
6. 1000nits, 1500nits sunlight readable optional
| WPC-O019SAC | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 19" Led |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 90% NTSC | |
| Response Time | 7/3 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 427 x 352 x 40 mm | |
| Cut-out Size | / | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Packing List
WPC-O019SAC Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
Applications
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
