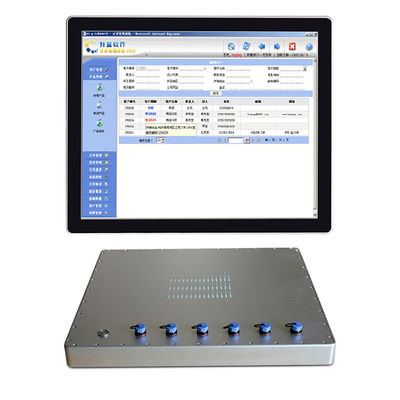

Rugged IP69K Industrial Panel Computer For Win 7 Win 10 Linux
Rugged IP69K Industrial Panel Computer For Win 7 Win 10 Linux Rugged IP69K waterproof pcap touch industrial panel pc For Win 7/10 and Linux Feature The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion. 1. 19" TFT LED 2. 10 points capacitive touch screen, high precision, durable, anti-interference 3. Intel Core i5
IP69K Industrial Panel Computer
,Rugged Industrial Panel Computer
,IP69K embedded touch panel pc
Rugged IP69K Industrial Panel Computer For Win 7 Win 10 Linux
Rugged IP69K waterproof pcap touch industrial panel pc For Win 7/10 and Linux
Feature
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
1. 19" TFT LED
2. 10 points capacitive touch screen, high precision, durable, anti-interference
3. Intel Core i5-6200U Dual Core 2.5GHz
4. Full IP66/69K sealed to providing 360 degree protection
5. Flexible, reliable, and rugged for open platform HMI/SCADA
6. CE, FCC, RoHS, IP69K Compliance
|
WPC-P019SAC |
||
|
System |
CPU |
Intel Core i5-6200U Dual Core 2.5GHz |
|
L2 Cache |
3MB |
|
|
Chipsets |
Intel 6th Skylake-U SOC |
|
|
Memory |
DDR4L 2133MHz 4GB, Up to 16GB |
|
|
Harddisk |
1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
|
|
Graphics |
Intel HD Graphics 520 |
|
|
Network |
Intel® i211 1000 Mbps port |
|
|
Audio |
Realtek ACL662 Audio controller |
|
|
Operation System |
Windows7 / 8 / 10, Linux, Unix, QNX |
|
|
I / O |
VGA |
1 x VGA / 1 x HD-MI ( Optional ) |
|
LAN |
1 x LAN ( Optional ) |
|
|
USB |
2 x USB2.0 / 2 x USB3.0 ( Optional ) |
|
|
COM |
2 x RS232 ( Optional ) |
|
|
Wireless Network |
WiFi + Bluetooth ( Optional ) |
|
|
Other I/O Interface |
1 x Power Switch |
|
|
LCD Panel |
Panel Size |
19" Led |
|
Resolution |
1280 x 1024 |
|
|
Aspect Ratio |
4:3 |
|
|
Display Brightness |
450 cd/m2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Colors |
16.7M , 90% NTSC |
|
|
Response Time |
7/3 (Typ.)(Tr/Td) ms |
|
|
Viewing Angle |
85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
|
|
Touch screen |
Touch Screen Type |
10 point capacitive touch |
|
Transmittance |
>90% |
|
|
Response Time |
<5ms |
|
|
Surface Hardness |
≥6H |
|
|
Supply Voltage |
5.0V DC |
|
|
Touch Life |
≧ 3000W |
|
|
Institutional |
Material |
Aluminum Alloy Shell |
|
Color |
Silver / Black ( optional ) |
|
|
VESA Mounting |
VESA: 100 x 100 mm |
|
|
Waterproof Rate |
IP66 / IP69K |
|
|
Product Dimension |
427 x 352 x 40 mm |
|
|
Cut-out Size |
/ |
|
|
Packing Size |
500 x 180 x 450 mm |
|
|
Gross Weight |
8.0 KG |
|
|
Power and Environment |
Operating Temperature |
-10~60°C |
|
Storage Temperature |
-20~80°C(-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
|
Working Voltage |
DC 12V~24V / optional(+9V~36V) |
|
|
Power Consumption |
≦30W |
|
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.
4. Heat sink in back case great for heat dissipation and beautiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
