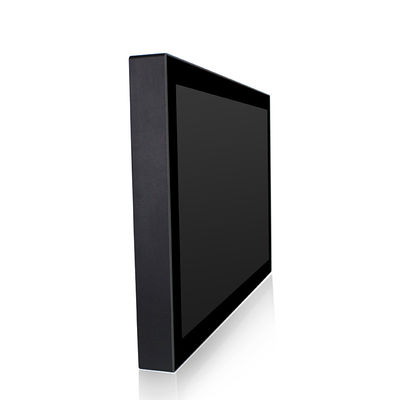

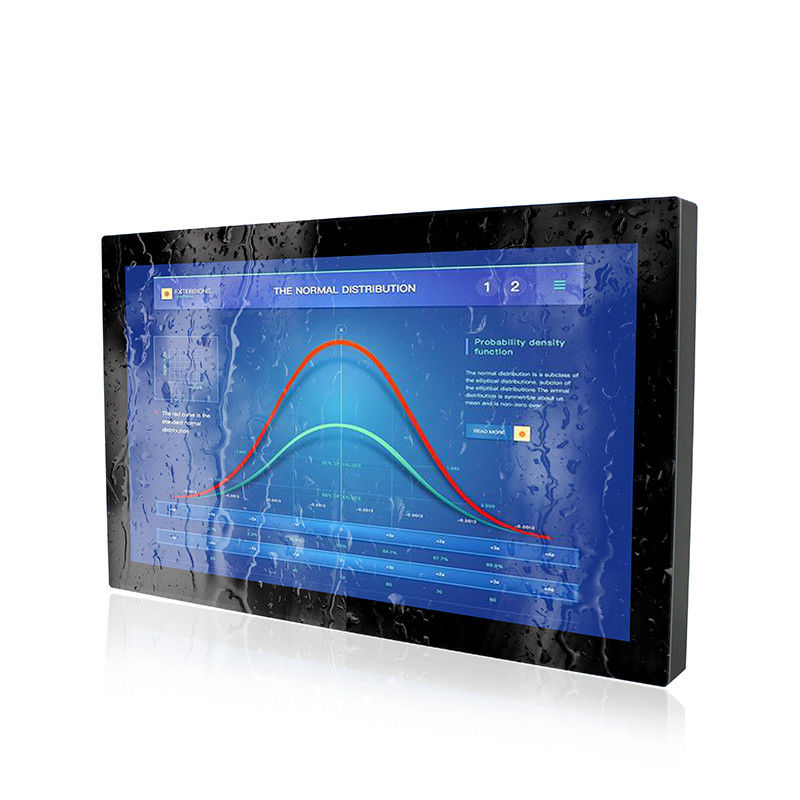

Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc

Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc
Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc

Large Image :  Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP66, IP69K
Model Number: WPC-J215WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc

Description
Waterproof Rating: IP69K Panel Size: 21.5" Led
Resolution: 1920 X 1080 Processor: Intel Celeron Quad Core J1900 2.0GHz
RAM: 4GB, Up To 8GB Harddisk: 32G / 64G / 128G / 250G / 500G SSD Optional
I/O Interface: VGA/HD-MI/LAN/USB/RS232 Touchscreen: Capacitive / Resistive Touch Optional
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

Outdoor industrial touch panel computer

,

Hmi industrial touch panel computer

,

Multi Touch panel mount pc

21.5" outdoor sealed waterproof multi touch hmi industrial panel pc sunlight readable

Feature
The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.


1.21.5" TFT LED, resolution 1920*1080, capacitive touch


2. Intel Bay trail j1900 CPU: 2.0GHz, waterproof panel pc touchscreen

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC12V~24V Input,(+9V~36V)wide voltage input optional

6. VESA Mounting: 100 x 100 mm

7. 1000nits, 1500nits sunlight readable optional




WPC-J215WAC
System CPU Intel Celeron Quad Core J1900 2.0GHz
L2 Cache 2MB
Chipsets Intel Bay Trail SOC
Memory DDR3L 1333MHz 4GB, Up to 8GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics
Network Intel 82583V 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O VGA 1 x VGA / 1 x HD-MI ( Optional )
LAN 1 x LAN ( Optional )
USB 3 x USB2.0 / 1 x USB3.0 ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 21.5" Led
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 250 cd/m2
Contrast Ratio 3000:1
Colors 16.7M , 74% NTSC
Response Time 13/5 (Typ.)(Tr/Td) ms
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type 10 point capacitive touch
Transmittance >90%
Response Time <5ms
Surface Hardness ≥6H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material Aluminum Alloy Shell
Color Silver / Black ( optional )
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP66 / IP69K
Product Dimension 536 x 328 x 40 mm
Cut-out Size /
Packing Size 630 x 190 x 480 mm
Gross Weight 12.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦30W


Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc 0Outdoor Industrial Touch Panel Computer , Multi Touch Hmi Panel Mount Pc 1

Packing List
WPC-J215WAC Waterproof Panel PC

Waterproof VGA/RS232/LAN/USB/COM cables

1x Utility DVD Driver

1x Power Adaptor

Applications

The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.

FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.


2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.


3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.


4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.


5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.


6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
