Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen

Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen
Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen

Large Image :  Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP67, IP69K
Model Number: WPC-J215WAR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen

Description
IP Rate: IP67 / IP68 / IP69K Size: 21.5" Led
Resolution: 1920 X 1080 Processor: Intel Celeron Quad Core J1900 2.0GHz
Memory: 4GB, Up To 8GB HDD: 32G / 64G / 128G / 250G / 500G SSD Optional
I/O Ports: VGA/HD-MI/LAN/USB/COM Touchscreen: Resistive Touch (Capacitive Touch Optional)
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

Rugged IP67 Panel PC

,

Windows10 IP67 Panel PC

,

Resistive rugged touch screen pc

Fully rugged 21.5" windows10 ip67 touch panel pc applications in industrial automation

Feature
The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.


1. 21.5" TFT LED, resolution 1920*1080



2. 5 wire resistive touch screen, high precision, durable, anti-interference


3. Intel Bay trail j1900 CPU: 2.0GHz, Aio Pc

4. Multi ports for option: VGA/HD-MI/LAN/USB/COM

5. Operating System: Win7/8/10/Linux/Ubuntu

6. DC12V~24V Input,(+9V~36V)wide voltage input optional


WPC-J215WAR
System CPU Intel Celeron Quad Core J1900 2.0GHz
L2 Cache 2MB
Chipsets Intel Bay Trail SOC
Memory DDR3L 1333MHz 4GB, Up to 8GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics
Network Intel 82583V 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O VGA 1 x VGA / 1 x HD-MI ( Optional )
LAN 1 x LAN ( Optional )
USB 3 x USB2.0 / 1 x USB3.0 ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 21.5" Led
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 250 cd/m2
Contrast Ratio 3000:1
Colors 16.7M , 74% NTSC
Response Time 13/5 (Typ.)(Tr/Td) ms
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type 5 wire resistive touch
Transmittance >85%
Response Time <5ms
Surface Hardness ≥3H
Supply Voltage 5.0V DC
Touch Life ≧ 1000W
Institutional Material Aluminum Alloy Shell
Color Silver / Black ( optional )
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP67 / IP68 / IP69K
Product Dimension 530 x 21 x 42 mm
Cut-out Size /
Packing Size 630 x 190 x 480 mm
Gross Weight 12.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦30W

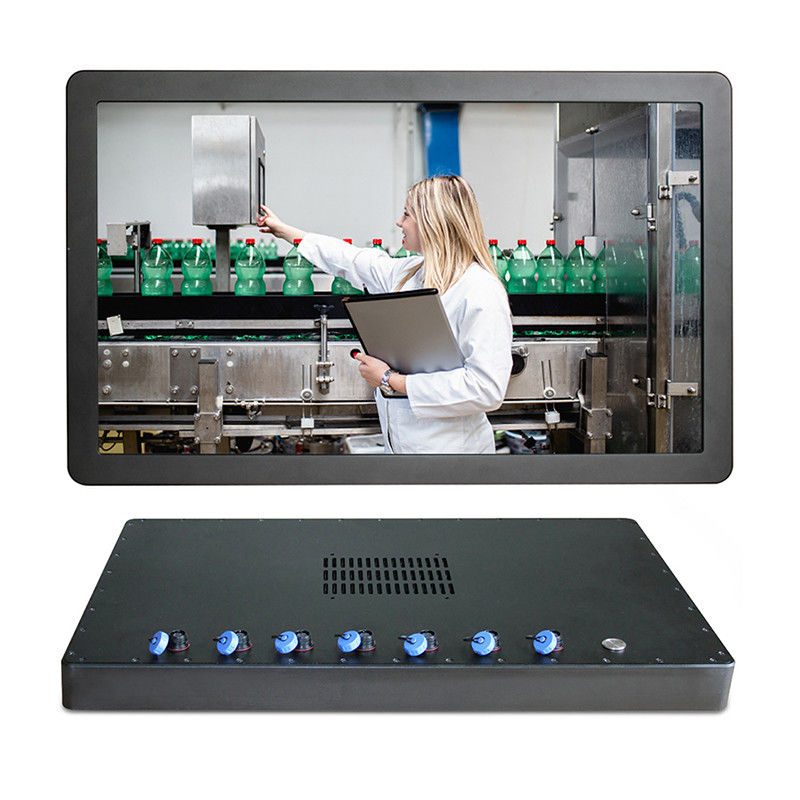

Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen 0Rugged 21.5" Windows10 IP67 Panel PC Resistive Touch Screen 1



Packing List

WPC-J215WAR Waterproof Panel PC

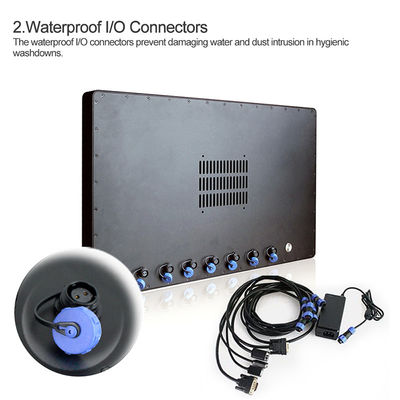

Waterproof VGA/RS232/LAN/USB/COM cables



1x Utility DVD Driver



1x Power Adaptor




Applications



Industrial automation



human Machine Interface



Marine control system



welding industry



supervisory control



numerical control device




Our Advantage

1. Experience

QYT has more than 10 years rich experience in Industrial Computer/monitor filed.



2. Wide products line

7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.



3. Customization functions

It offers rich of interface to meet csutomers needs.



4.Widely useage environment

QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
