Product Details:
|
| IP Rating: | IP67 / IP68 / IP69K | Size: | 21.5" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | Processor: | Intel Celeron Dual Core 3855U 1.6GHz |
| Memory: | DDR4L 2133MHz 4GB, Up To 16GB | Harddisk: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Resistive Touch / Capacitive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | 21.5 Inch industrial all in one computer,4G LTE industrial all in one computer,industrial waterproof touch screen pc |
||
Feature

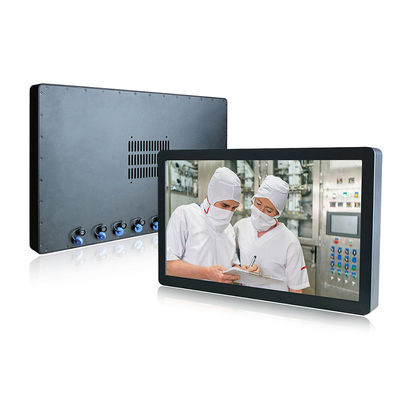

This is a Aluminum Alloy IP68 waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.
1. 21.5" TFT LED with 5 wire resistive touch
2. Intel Celeron Dual Core 3855U 1.6GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 8GB
4. Multi ports optional:HDMI/LAN/USB/COM
5. Full system IP67/IP68/IP69K with Aluminum Alloy Shell
6. DC12V~24V Input (+9V～36V wide voltage optional)
7. -20°C ~ 70°C extended operating temperature
| WPC-M215WAR | ||
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 510 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 21.5" Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250 cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Colors | 16.7M , 74% NTSC | |
| Response Time | 13/5 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |

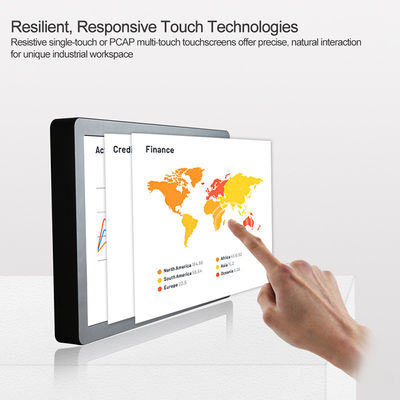

| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 530 x 21 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 630 x 190 x 480 mm | |
| Gross Weight | 12.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Applications
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
