Product Details:
|
| IP Rate: | IP65 Front | Panel Size: | 12" |
|---|---|---|---|
| Touch Screen Type: | Multi-Touch PCAP | Resolution: | 800 X 600 |
| Aspect Ratio: | 4:3 | Viewing Angle: | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) |
| Display Brightness: | 400 Cd/m2 | I/O: | 1*VGA, 1*HDMI, 1*DVI, 1*USB |
| High Light: | 12" led Industrial Touch Screen Display,Vesa Mounting Industrial Touch Screen Display,Flat led touch screen |
||
Feature

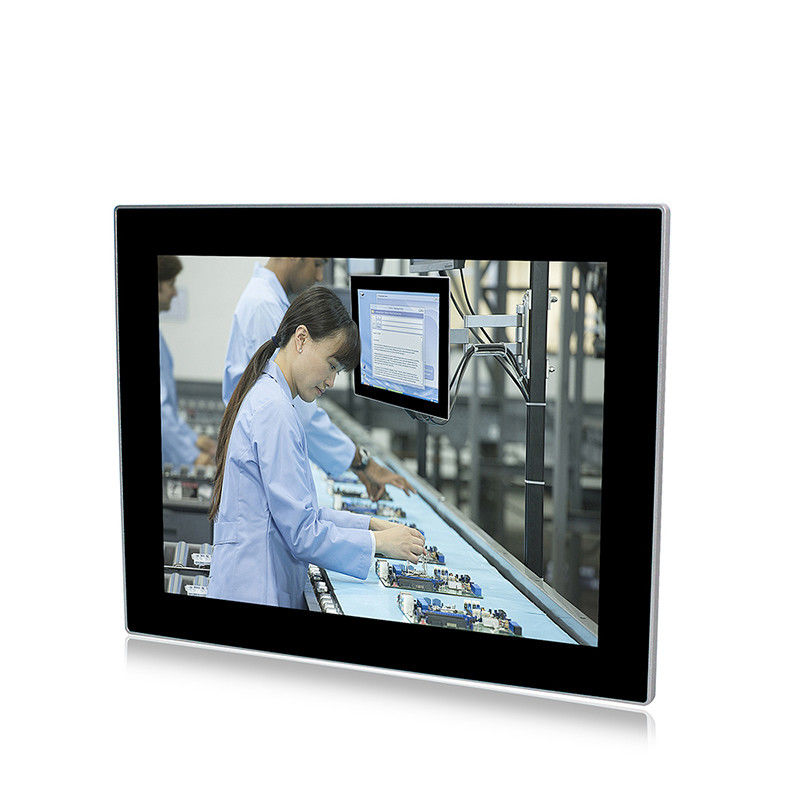

The industrial touch monitor is ideal for applications such as Industry 4.0, Rail Transit, Equipment Control Cabinet, Industrial Equipment Control, Cabin Driving, Vision Detection and CNC Control Panel.
3. HDMI/VGA/DVI multiple signals input supported
4. DC12V Input, (+9V～36V) wide voltage input optional
5. -20°C ~ 70°C extended operating temperature
6. IP65 Compliant Front Panel
7. Support wall mounting, embedded mounting, desk stand mouting etc.
| PM-H012SAC | ||
| LCD Panel | Panel Size | 12" LED |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |

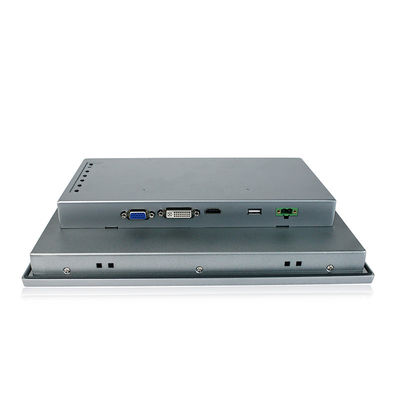

| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI | |
| DVI | 1 x DVI | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x OSD Control Key | |

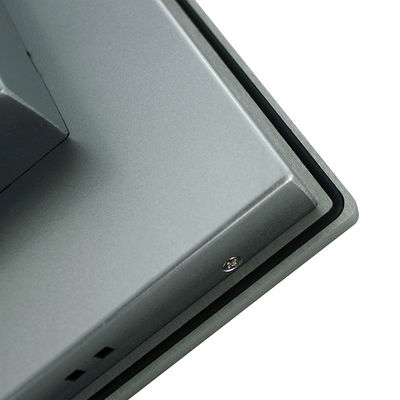

| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 304 x 243 x 55 mm | |
| Cut-out Size | 290 x 229 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage |
DC 12V / optional(+9V~36V) |
|
Products Advantages
1. Full Material is aluminium alloy, it's very sturdy and durables.
2. Symmetric design can be utillized in portrait mode with style.
3. Industrial LCD panel and touchscreen is industrial grade, high nits, true color and suitable for poor working enviroment
4. Signal ports is VGA, DVI and HDMI, suitable for different applications.
5. -20C to +70°C Wide temperature support.
6. Accept customization
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
