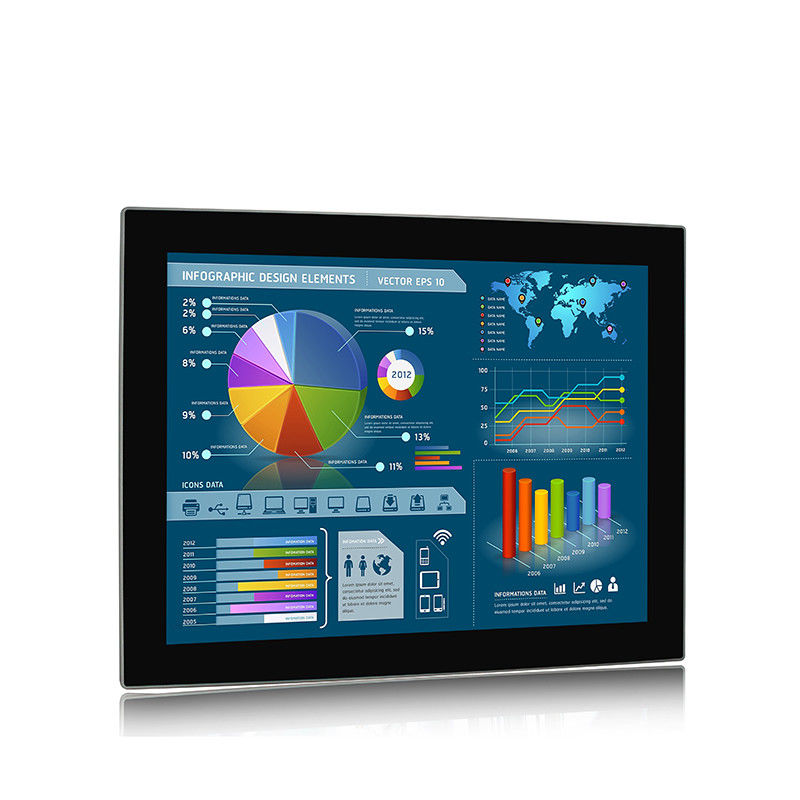

1000nits 17 Inch Industrial Touch Screen Display Embedded For Outdoor
17" 1000nits embedded Industrial Touch Screen Display high brightness for outdoor use Feature The industrial touch monitor is ideal for applications such as Industry 4.0, Rail Transit, Equipment Control Cabinet, Industrial Equipment Control, Cabin Driving, Vision Detection and CNC Control Panel. 1. 17" TFT LED with PCAP Touch 2. Embedded / VESA mounting 3. HDMI/VGA/DVI multiple signals input supported 4. DC12V Input, (+9V～36V) wide voltage input optional 5. -20°C ~ 70°C
1000nits Industrial Touch Screen Display
,outdoor Industrial Touch Screen Display
,17 inch industrial touch screen panel
17" 1000nits embedded Industrial Touch Screen Display high brightness for outdoor use
Feature
The industrial touch monitor is ideal for applications such as Industry 4.0, Rail Transit, Equipment Control Cabinet, Industrial Equipment Control, Cabin Driving, Vision Detection and CNC Control Panel.
2. Embedded / VESA mounting
3. HDMI/VGA/DVI multiple signals input supported
4. DC12V Input, (+9V～36V) wide voltage input optional
5. -20°C ~ 70°C extended operating temperature
6. IP65 Compliant Front Panel
| PM-H017SAC | ||
| LCD Panel | Panel Size | 17" LED |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI | |
| DVI | 1 x DVI | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x OSD Control Key | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 395 x 327 x 55 mm | |
| Cut-out Size | 381 x 313 mm | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
Features
1. 17-inch touch monitor
2. Adopt multi-touch capacitive touchscreen
3. Industrial LCD panel, wide viewing angle, true color
4. 1000nits, 1500nits brightness optional
5. Sturable rugged enclosure which is for harsh environment
OEM/ODM
1. size from 7''-24'' available
2. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
