Embedded Industrial Computer Products , J1900 3855U I3 I5 HDMI VGA Fanless Box Pc
Fanless embedded industrial pc J1900 3855U i3 i5 2*LAN 4*COM 6*USB HD-MI VGA Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality. Shinho Fanless
VGA industrial computer products
,J1900 industrial computer products
,HDMI fanless box pc

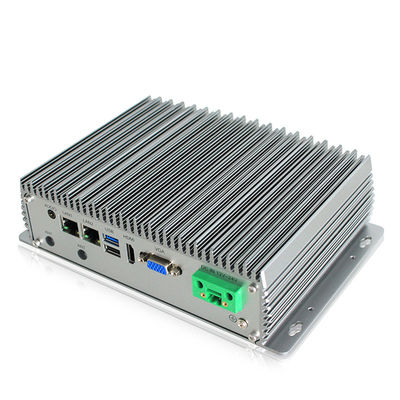

Fanless embedded industrial pc J1900 3855U i3 i5 2*LAN 4*COM 6*USB HD-MI VGA
Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.
Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.
Feature
1. Aluminium alloy shell
2. Intel Bay trail j1900 2.0GHz, X86 embedded computer
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
Specification
| EFIC-1000JA | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |

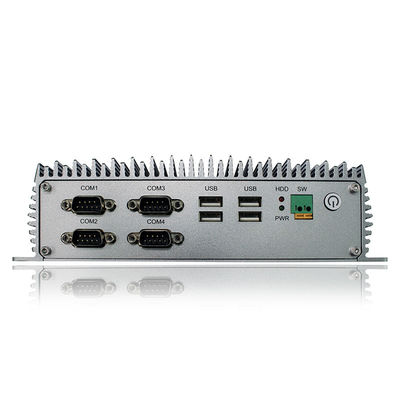

| I / O | VGA | 1 x VGA / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 5 x USB2.0 / 1 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦15W | |
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
