Product Details:
|
| Size: | 7.4" | Resolution: | 800 X 600 |
|---|---|---|---|
| CPU: | Intel Celeron Quad Core J1900 2.0GHz | Memory: | DDR3L 1333MHz 4GB, Up To 8GB |
| Harddisk: | 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | Touchscreen: | 5 Wire Resistive Touch |
| VGA: | 1 X VGA | USB: | 3 X USB2.0 / 1 X USB3.0 |
| LAN: | 1 X LAN | VESA: | 100 X 100 Mm |
| High Light: | 450nits Rugged Embedded Computer,Hmi Rugged Embedded Computer,VESA hmi touch panel pc |
||

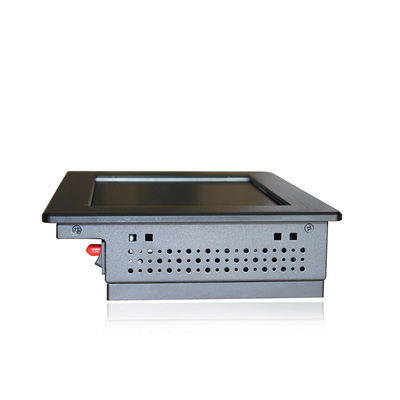

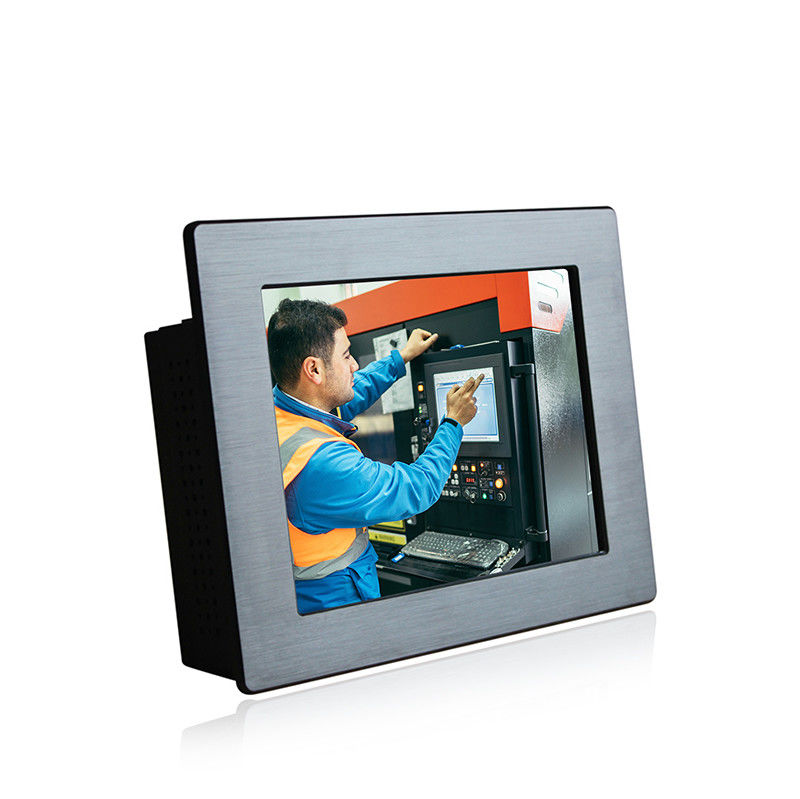

450nits 800 X 600 Industrial Hmi Touch Panel VESA With GPIO Windows
Feature
1. 8.4" TFT LED, resolution 800 x 600, resistive touch
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.

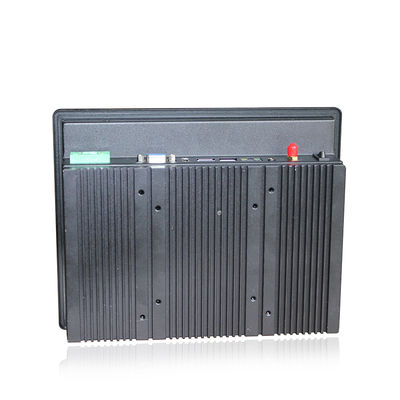

4. Heat sink in back case great for heat dissipation and beautiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
Specification
| PPC-J008SAR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA |
| Digital signal | 1 x HD-MI | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| LAN | 1 x LAN | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 8.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 600:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 235 x 185 x 55 mm | |
| Cut-out Size | 221 x 171 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~19V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
