Product Details:
|
| Size: | 8.4" | Resolution: | 800 X 600 |
|---|---|---|---|
| CPU: | Intel Core I3-6100U Dual Core 2.4GHz | Memory: | DDR3L 1333MHz 4GB, Up To 8GB |
| Harddisk: | 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | Touchscreen: | 5 Wire Resistive Touch |
| I/O: | 1*VGA ,1*HD-MI,2*USB2.0 / 2*USB3.0,1*LAN,WiFi + Bluetooth ( Optional ) | VESA Mounting: | 100 X 100 Mm |
| Material: | Aluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated | Product Dimension: | 235 X 185 X 55 Mm |
| High Light: | Ubuntu linux touch panel pc,8.4 Inch linux touch panel pc,450nits industrial panel computer |
||

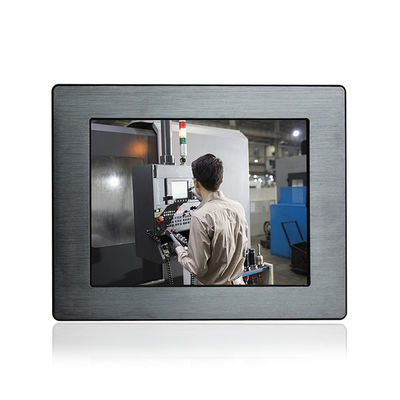

800 X 600 450nits Industrial Touch Panel Linux Ubuntu 8.4" Intel Core I3-6100U
Feature
1. 8.4" TFT LED, resolution 800 x 600, resistive touch
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Specification
| PPC-O008SAR | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |

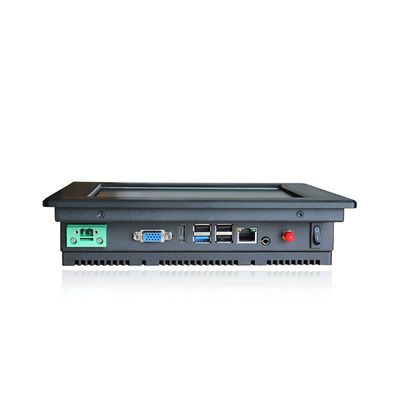

| I / O | VGA | 1 x VGA |
| Digital signal | 1 x HD-MI | |
| USB | 2 x USB2.0 / 2 x USB3.0 | |
| LAN | 1 x LAN | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 8.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 600:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |

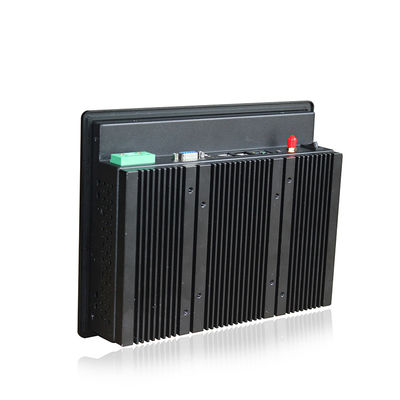

| Institutional | Material | Aluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 235 x 185 x 55 mm | |
| Cut-out Size | 221 x 171 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~19V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Application
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
