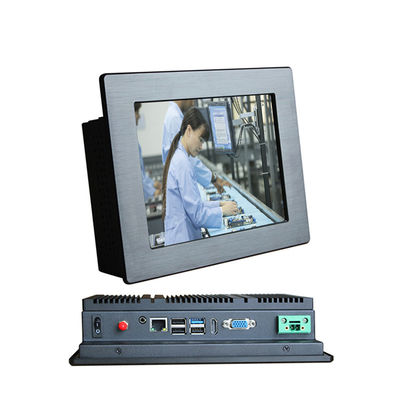

I5-6200U DC 12V-19V Industrial Touch Screen Computer For Vehicle Resistive Touch
Industrial Panel Pc I5-6200U DC 12V~19V For Vehicle Resistive Touch Feature 1. 8.4" TFT LED, resolution 800 x 600, resistive touch 2. Intel Core Dual Core i5-6200U 2.5GHz, mini pc wifi 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Win7/8/10/Linux/Ubuntu 5. DC12V~24V Input,(+9V～36V)wide voltage input optional Specification PPC-P008SAR System CPU Intel Core i5-6200U Dual Core 2.5GHz L2 Cache 3MB Chipsets Intel 6th Skylake-U SOC Memory DDR4L 2133MHz 4GB,
12V industrial touch screen computer
,Resistive industrial touch screen computer
Industrial Panel Pc I5-6200U DC 12V~19V For Vehicle Resistive Touch
Feature
1. 8.4" TFT LED, resolution 800 x 600, resistive touch
2. Intel Core Dual Core i5-6200U 2.5GHz, mini pc wifi
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
Specification
| PPC-P008SAR | ||
| System | CPU | Intel Core i5-6200U Dual Core 2.5GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA |
| Digital signal | 1 x HD-MI | |
| USB | 2 x USB2.0 / 2 x USB3.0 | |
| LAN | 1 x LAN | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 8.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 600:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 235 x 185 x 55 mm | |
| Cut-out Size | 221 x 171 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~19V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Industrial fully enclosed industrial computer, aluminum alloy shell, fully enclosed design, metal grid heat dissipation, strong configuration, rich interface design, all-weather operation, multiple USB interfaces, synchronous / asynchronous dual display, WiFi / Bluetooth support. It is widely used in industry and all aspects of people's life.
1. Rich interface, everything: perfect interface design, whether it is high-definition HDMI, or professional serial port, everything.
2. Core can be strong, with speed around life: equipped with Intel strong core processor, innovation speed, efficient operation.
3. No fan mute, all aluminum heat dissipation: all aluminum shell, efficient heat dissipation scheme, shockproof, anti falling, no fan mute.
4. Industrial dustproof, high and low temperature resistance: support - 10 ℃ to 60 ℃ wide temperature, especially suitable for industrial use.
5. 7 * 24 hours of stable operation throughout the year: 24 hours of operation throughout the year, no stuck, no crash.
6. Easy to deal with harsh environment: Farewell to industrial dust, high temperature, shaking trouble, strong adaptability.
7. Support a variety of operating systems: support win7, win10, XP system.
8. Application fields: industrial places, financial institutions, monitoring systems, medical equipment.
9. Installation method: it has its own installation bracket, supports wall mounted, rack mounted, desktop, embedded and other installation methods, and can be flexibly fixed on the desktop, wall, etc. Save space, simple and fast installation.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
