Product Details:
|
| Size: | 10" | Resolution: | 1280 X 800 |
|---|---|---|---|
| CPU: | Intel J1900, Intel I3/i5/i7 | Memory: | DDR3L 1333MHz 4GB, Up To 8GB |
| Harddisk: | 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | Touchscreen: | Capacitive / Resistive |
| Brightness: | 400 ,1000nits Optional | Mounting Method: | Panel Mounted,VESA |
| Storage Temperature: | -20~80°C(-22~176°F) | Operating Temperature: | -10~60°C |
| High Light: | 10 Inch Embedded Touch Panel PC,J1900 Embedded Touch Panel PC,RS422 panel mount pc |
||

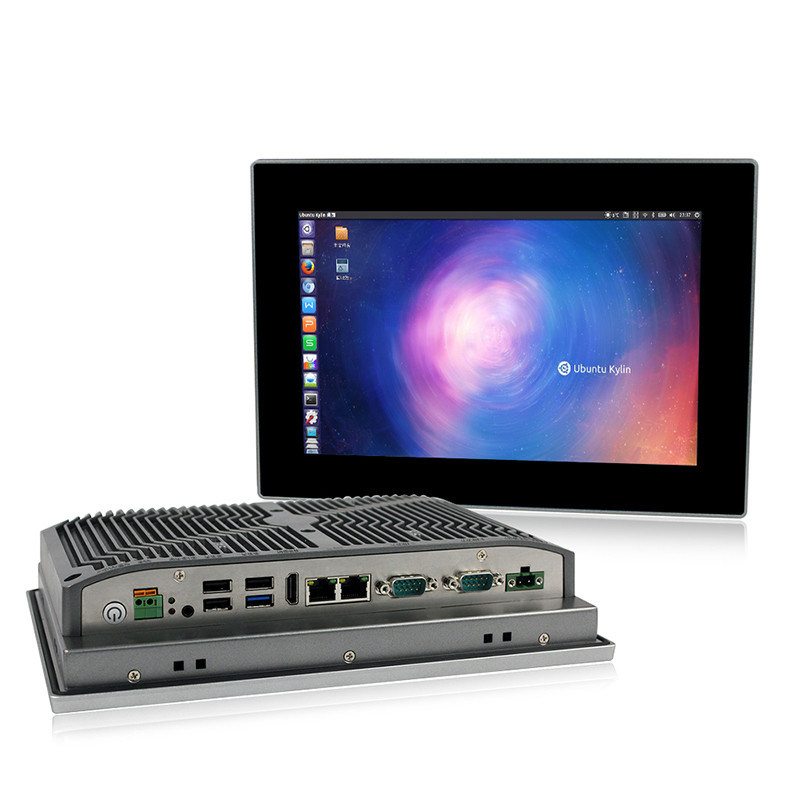

10" Fanless Industrial Touch Screen Panel Pc J1900 With RS232 RS422 RS485
Feature
1. 10.1" TFT LED, resolution 1280*800, Multi-Touch PCAP
Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
Onboard DDR3 4GB Memory / Optional SODIMM SKU
LCD+HDMI Output, Support Dual view/Simultaneous display
Fanless Operation
IP65 Front Bezel
Wide DC Support 9 ~ 36V
GPIO Port
All Aluminum Housing with Heatsink
Specification
| PPC-J010WAC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 900:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 / IP66 | |
| Product Dimension | 275 x 194 x 58 mm | |
| Cut-out Size | 263 x 182 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
Industrial fully enclosed industrial computer, aluminum alloy shell, fully enclosed design, metal grid heat dissipation, strong configuration, rich interface design, all-weather operation, multiple USB interfaces, synchronous / asynchronous dual display, WiFi / Bluetooth support. It is widely used in industry and all aspects of people's life.
1. Rich interface, everything: perfect interface design, whether it is high-definition HDMI, or professional serial port, everything.
2. Core can be strong, with speed around life: equipped with Intel strong core processor, innovation speed, efficient operation.
3. No fan mute, all aluminum heat dissipation: all aluminum shell, efficient heat dissipation scheme, shockproof, anti falling, no fan mute.
4. Industrial dustproof, high and low temperature resistance: support - 10 ℃ to 60 ℃ wide temperature, especially suitable for industrial use.
5. 7 * 24 hours of stable operation throughout the year: 24 hours of operation throughout the year, no stuck, no crash.
6. Easy to deal with harsh environment: Farewell to industrial dust, high temperature, shaking trouble, strong adaptability.
7. Support a variety of operating systems: support win7, win10, XP system.
8. Application fields: industrial places, financial institutions, monitoring systems, medical equipment.
9. Installation method: it has its own installation bracket, supports wall mounted, rack mounted, desktop, embedded and other installation methods, and can be flexibly fixed on the desktop, wall, etc. Save space, simple and fast installation.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
