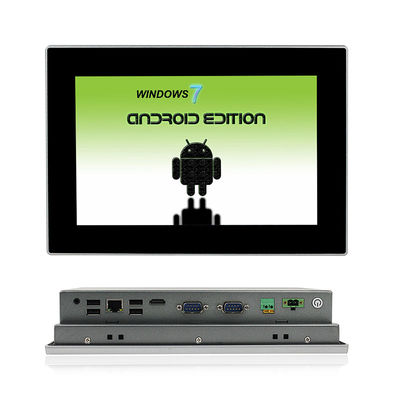

RK3288 Android Touch Panel PC

RK3288 Android Touch Panel PC
RK3288 Android Touch Panel PC RK3288 Android Touch Panel PC RK3288 Android Touch Panel PC

Large Image :  RK3288 Android Touch Panel PC

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: IP65 FCC CE ROHS
Model Number: PPC-R010WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Foam + Carton
Delivery Time: 3-5 working days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

RK3288 Android Touch Panel PC

Description
Size: 10" Resolution: 1280 X 800
CPU: ARM RK3288 Cortex-A17 1.8 GHz Memory: 2G DDR3
Storage: EMMC 8G(16G Optional) Touchscreen: Multi-Touch PCAP
Brightness: 400 ,1000nits Optional Mounting Method: Panel Mounted,VESA
Storage Temperature: -20~80°C(-22~176°F) Operating Temperature: -10~60°C
Highlight:

400nits Android Touch Panel PC

,

RK3288 Android Touch Panel PC

Android RK3288 20W 10.1" 400nits Android Industrial Panel Pc SCADA



Feature

1. 10.1" TFT LED, resolution 1280 x 800, Multi-Touch PCAP


2. ARM RK3288 Cortex-A17 1.8G, 10 " android industrial pc

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Android

5. DC12V Input,(+9V~36V)wide voltage input optional



Specification

PPC-R010WAC
System CPU ARM RK3288 Cortex-A17 1.8 GHz
Memory 2G DDR3
Storage EMMC 8G(16G Optional)
GPU ARM Mali-T764
Lan RTL 8211E 1000 Lan
Audio RTL ALC662
Operation System Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04
I / O H-DMI 1 x H-DMI
LAN 1 x LAN
USB 4 x USB 2.0
COM 2 x RS232
Audio 1 x AUDIO
Wireless Network WiFi / Bluetooth ( 4G / Optional )
LCD Panel Panel Size 10.1" Led
Resolution 1280 x 800
Aspect Ratio 16:10
Display Brightness 400 cd/m2
Contrast Ratio 900:1
Backlight Lifetime 30000 Hr (min.)
Viewing Angle 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65 / IP66
Product Dimension 275 x 194 x 56 mm
Cut-out Size 263 x 182 mm
Packing Size 450 x 170 x 350 mm
Gross Weight 5 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V / optional(+9V~36V)
Power Consumption ≦20W



RK3288 Android Touch Panel PC 0RK3288 Android Touch Panel PC 1RK3288 Android Touch Panel PC 2

Industrial fully enclosed industrial computer, aluminum alloy shell, fully enclosed design, metal grid heat dissipation, strong configuration, rich interface design, all-weather operation, multiple USB interfaces, synchronous / asynchronous dual display, WiFi / Bluetooth support. It is widely used in industry and all aspects of people's life.

1. Rich interface, everything: perfect interface design, whether it is high-definition HDMI, or professional serial port, everything.
2. Core can be strong, with speed around life: equipped with Intel strong core processor, innovation speed, efficient operation.
3. No fan mute, all aluminum heat dissipation: all aluminum shell, efficient heat dissipation scheme, shockproof, anti falling, no fan mute.
4. Industrial dustproof, high and low temperature resistance: support - 10 ℃ to 60 ℃ wide temperature, especially suitable for industrial use.
5. 7 * 24 hours of stable operation throughout the year: 24 hours of operation throughout the year, no stuck, no crash.
6. Easy to deal with harsh environment: Farewell to industrial dust, high temperature, shaking trouble, strong adaptability.
7. Application fields: industrial places, financial institutions, monitoring systems, medical equipment.
8. Installation method: it has its own installation bracket, supports wall mounted, rack mounted, desktop, embedded and other installation methods, and can be flexibly fixed on the desktop, wall, etc. Save space, simple and fast installation.


FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
