Product Details:
|
| IP Rating: | IP65 Front | Size: | 24" |
|---|---|---|---|
| Screen: | PCAP Touch | Resolution: | 1920 X 1080 |
| Aspect Ratio: | 16:9 | Viewing Angle: | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
| Display Brightness: | 250 Cd/m2 | I/O Input: | 1*VGA, 1*HDMI, 1*DVI, 1*USB |

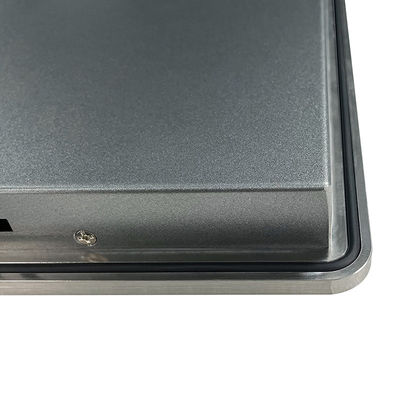

| Material: | Stainless Steel Panel + Sheet Metal Painting Treated Back Shell | ||
| Highlight: | 24" Fhd Industrial Touch Screen Display,Open Frame Industrial Touch Screen Display |
||
Feature

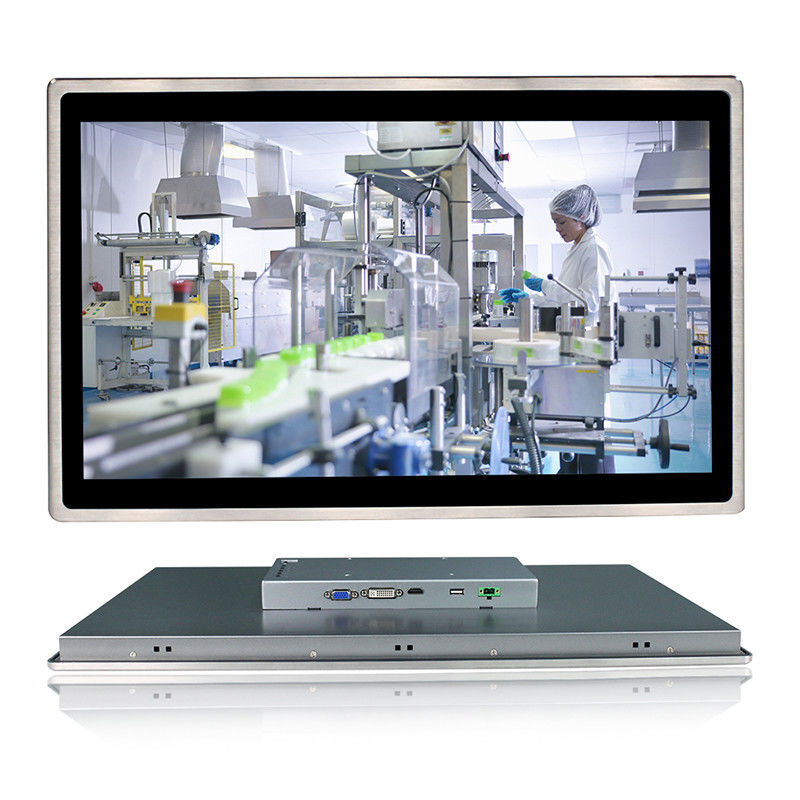

The industrial touch monitor is ideal for applications such as Industry 4.0, Rail Transit, Equipment Control Cabinet, Industrial Equipment Control, Cabin Driving, Vision Detection and CNC Control Panel.
2. Embedded / VESA mounting
3. HDMI/VGA/DVI multiple signals input supported
4. DC12V Input, (+9V～36V) wide voltage input optional
5. -20°C ~ 70°C extended operating temperature

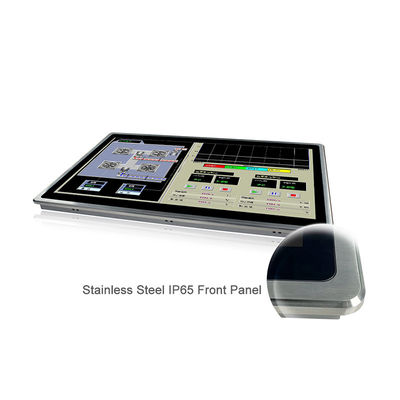

6. IP65 Compliant Front Panel
| PM-H024WAC | ||
| LCD Panel | Panel Size | 24" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |

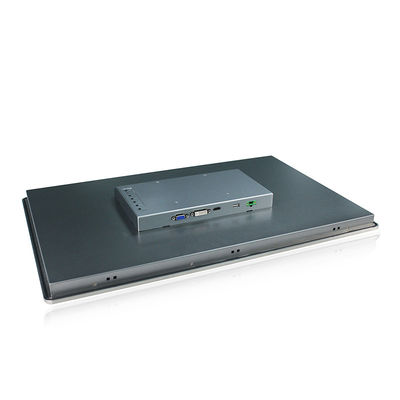

| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI | |
| DVI | 1 x DVI | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x OSD Control Key | |
| Institutional | Material | Stainless Steel Panel + Sheet Metal Painting Treated Back Shell |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 594 x 377 x 60 mm | |
| Cut-out Size | 577 x 359 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
OEM/ODM
1. size from 7''-24'' available
2. Capacitive touch / Resistive touch or without touch
3. 1000nits, 1500nits high brightness for sunlight readable
4. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
