Product Details:
|
| Size: | 15.6" FHD Led | Resolution: | 1920 X 1080 |
|---|---|---|---|
| CPU: | Intel Celeron Quad Core J1900 2.0GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
| Storage: | 1 X MSATA 64G SSD / ( 128G / 240G / 480G SSD ) Optional | Touchscreen: | Multi-Touch PCAP |
| Aspect Ratio: | 16:9 | Display Brightness: | 600 Cd/m2 |
| Working Voltage: | DC IN 9V~36V | Power Consumption: | ≦30W |
| High Light: | 15.6 Inch Industrial Touch Panel PC,ROHS Industrial Touch Panel PC |
||
Feature
Application
Application
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
Specification
| PPC-J156WAC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |

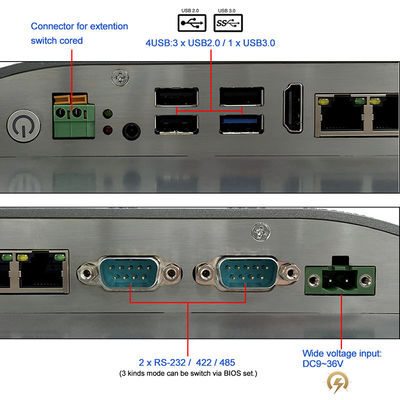

| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15.6" FHD Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 600 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 400 x 250 x 60 mm | |
| Cut-out Size | 386 x 236 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
Product Advantage
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dustproof.

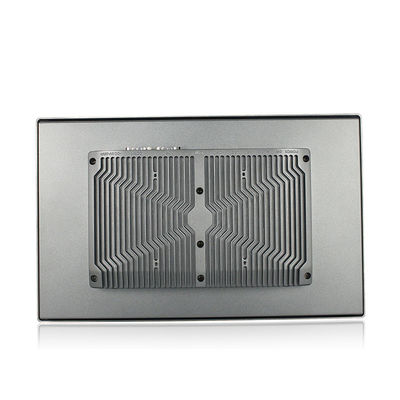

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.
7. High performance motherboard, 7x24 continuous operation.
Attention of warranty
1. First-year warranty: by free
2. 2nd to 3rd-year warranty: maintaining by some charges.
Advantages
1. High reliability, continuous production, and decreasing failure rate.
2. Intel® Core I3/I5/I7 optional, very suitable for your various demands.
3. Support hardware reset (256 level, 0-255 sec)
4. Expanded display for Multi-task, Electricity Boot.
5. Work well in the industrial environment.
6. Aluminum alloy enclosure, fanless design for high heat dissipation.
