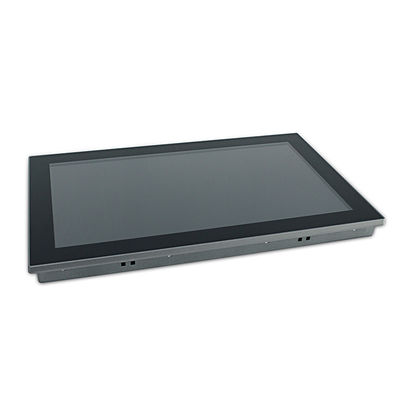

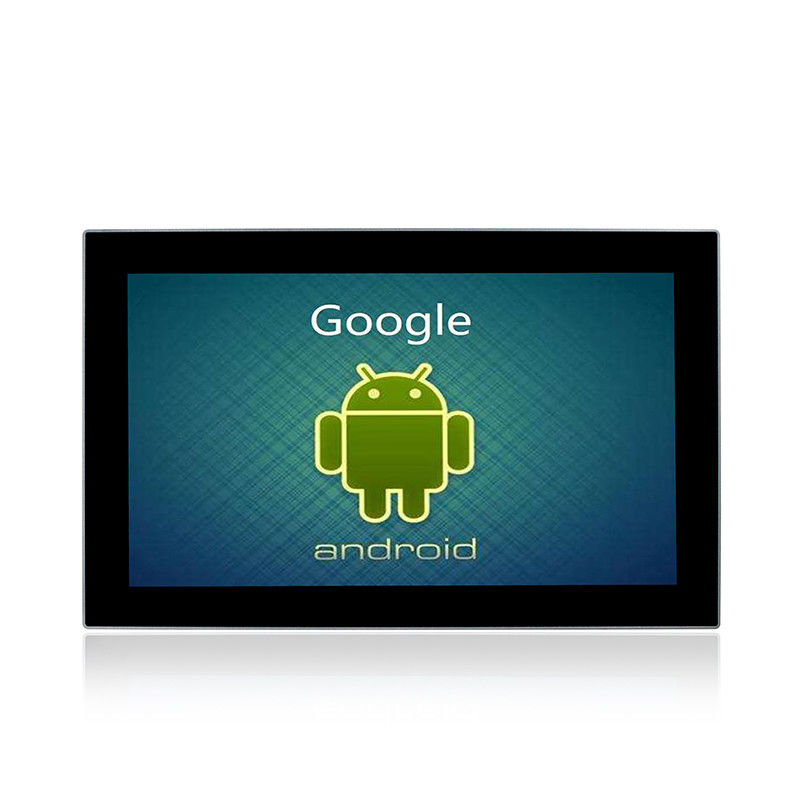

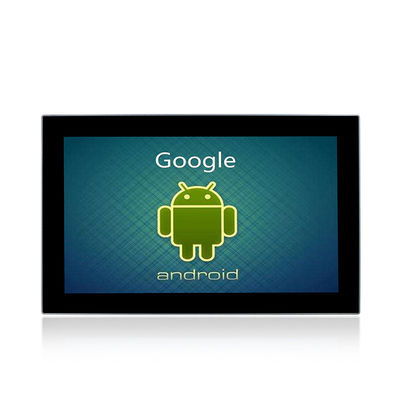

1920 X 1080 Android Touch Panel PC
15.6" Sunlight Readable Industrial Android Tablet Multi Point Pcap Touch 1920 X 1080 1. 15.6" TFT LED, resolution 1920 x 1080, Multi-Touch PCAP 2. ARM RK3288 Cortex-A17 1.8G, android embedded pc 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating System: Android 5. DC12V Input,(+9V～36V)wide voltage input optional Features 1. Super thin and ultra narrow bezel, Fully enclosed design, the whole tablet PC is dustproof. 2. Full flat panel aluminum alloy brushed, front
Pcap Android Touch Panel PC
,1920 X 1080 Android Touch Panel PC
2. ARM RK3288 Cortex-A17 1.8G, android embedded pc
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Android
5. DC12V Input,(+9V～36V)wide voltage input optional
Features
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole tablet PC is dustproof.
2. Full flat panel aluminum alloy brushed, front panel IP65 waterproof.
3. Full aluminum alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, full viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
6. High performance motherboard, 7x24 continuous operation.
7. With wifi, bluetooth.
Specification
| PPC-R156WAC | ||
| System | CPU | ARM RK3288 Cortex-A17 1.8 GHz |
| Memory | 2G DDR3 | |
| Storage | EMMC 8G(16G Optional) | |
| GPU | ARM Mali-T764 | |
| Lan | RTL 8211E 1000 Lan | |
| Audio | RTL ALC662 | |
| Operation System | Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04 | |
| I / O | H-DMI | 1 x H-DMI |
| LAN | 1 x LAN | |
| USB | 4 x USB 2.0 | |
| COM | 2 x RS232 | |
| Audio | 1 x AUDIO | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| LCD Panel | Panel Size | 15.6" FHD Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 600 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

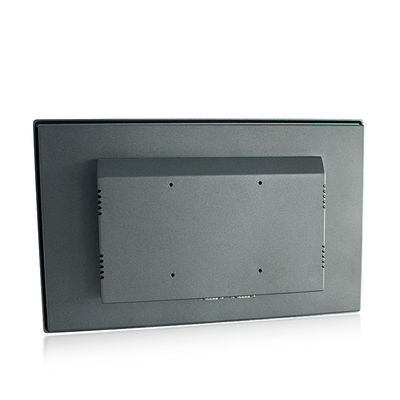

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 400 x 250 x 58 mm | |
| Cut-out Size | 386 x 236 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
| Power Consumption | ≦20W | |
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
