Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size

Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size
Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size

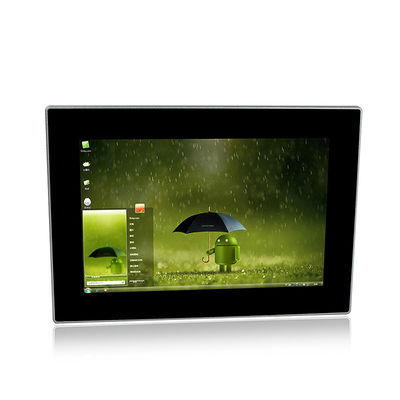

Large Image :  Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-R010WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size

Description
IP Rating: Front IP65 Led Panel: 10.1" LED
Resolution: 1280 X 800 CPU: ARM RK3288 Cortex-A17 1.8G
Memory: 2GB/4GB/8GB ( Optional) Harddisk: EMMC 8G/16G ( Optional)
I/O Port: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive
High Light:

RS232 android wall mount touch screen

,

Desktop android wall mount touch screen

10" Wide Screen Ip65 Desktop RK3288 Android Touch Panel Pc With 2*RS232

Competitive Advantages:

Well and High Quality Control;

Prompt Delivery;

Competitive Price;

Earth-friendly Products;

Small Trial Order Acceptable;

OEM/ODM service welcome.



Feature



1. 10.1" TFT LED, resolution 1280 x 800, Multi-Touch PCAP


2. ARM RK3288 Cortex-A17 1.8G, 10 " android industrial pc

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Android

5. DC12V Input,(+9V~36V)wide voltage input optional

PPC-R010WAC
System CPU ARM RK3288 Cortex-A17 1.8 GHz
Memory 2G DDR3
Storage EMMC 8G(16G Optional)
GPU ARM Mali-T764
Lan RTL 8211E 1000 Lan
Audio RTL ALC662
Operation System Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04
I / O H-DMI 1 x H-DMI
LAN 1 x LAN
USB 4 x USB 2.0
COM 2 x RS232
Audio 1 x AUDIO
Wireless Network WiFi / Bluetooth ( 4G / Optional )
LCD Panel Panel Size 10.1" Led
Resolution 1280 x 800
Aspect Ratio 16:10
Display Brightness 400 cd/m2
Contrast Ratio 900:1
Backlight Lifetime 30000 Hr (min.)
Viewing Angle 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 275 x 194 x 56 mm
Cut-out Size 263 x 182 mm
Packing Size 450 x 170 x 350 mm
Gross Weight 5 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V / optional(+9V~36V)
Power Consumption ≦20W


Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size 0Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size 1Desktop RK3288 2*RS232 Android Wall Mount Touch Screen 10" Size 2


Packing List:

1xPPC-R010WAC Series Industrial Panel PC

1x Utility DVD Driver

8x Embedded Buckles

1x Power Adaptor




Applications



Industrial automation



human Machine Interface



Marine control system



welding industry



supervisory control



numerical control device



FAQ

1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.

6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
