Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 15" LED |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | ARM RK3288 Cortex-A17 1.8G |
| RAM: | 2GB/4GB/8GB ( Optional) | Harddisk: | EMMC 8G/16G ( Optional) |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | 15" Android Touch Panel PC,Capacitive Android Touch Panel PC,Android touch screen computer |
||
Feature
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
1. Aluminium alloy front panel, front IP65 waterproof
2. 15" TFT LED, resolution 1024×768, capacitive touch
3.ARM RK3288 Cortex-A17 1.8G, industrial panel pc

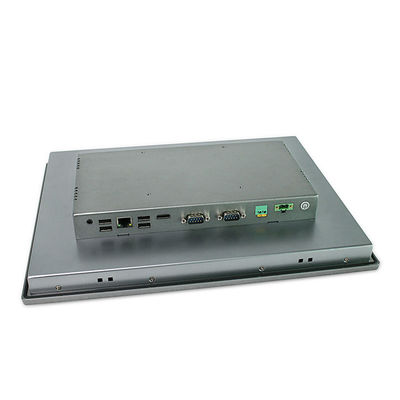

4.Multi ports for option: VGA/HDMI/LAN/USB/COM
5. DC12V Input, (+9V～36V) wide voltage input optional
| PPC-R015SAC | ||
| System | CPU | ARM RK3288 Cortex-A17 1.8 GHz |
| Memory | 2G DDR3 | |
| Storage | EMMC 8G(16G Optional) | |
| GPU | ARM Mali-T764 | |
| Lan | RTL 8211E 1000 Lan | |
| Audio | RTL ALC662 | |
| Operation System | Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04 | |
| I / O | H-DMI | 1 x H-DMI |
| LAN | 1 x LAN | |
| USB | 4 x USB 2.0 | |
| COM | 2 x RS232 | |
| Audio | 1 x AUDIO | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| LCD Panel | Panel Size | 15" LED |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 361 x 285 x 58 mm | |
| Cut-out Size | 347 x 271 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
| Power Consumption | ≦20W | |
Competitive Advantages:
Well and High Quality Control;
Prompt Delivery;
Competitive Price;
Earth-friendly Products;
Small Trial Order Acceptable;
OEM/ODM service welcome.
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
