Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 17" LED |
|---|---|---|---|
| Resolution: | 1280 X 1024 | CPU: | ARM RK3288 Cortex-A17 1.8G |
| Memory: | 2GB/4GB/8GB ( Optional) | Harddisk: | EMMC 8G/16G ( Optional) |
| I/O Interface: | VGA/HD-MI/LAN/USB/RS232/RS485 | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | Android open frame panel pc,17 Inch open frame panel pc,EMMC 8G multi touch panel pc |
||
Feature

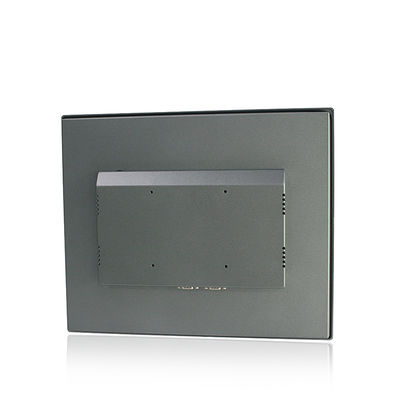

The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
| PPC-R017SAC | ||
| System | CPU | ARM RK3288 Cortex-A17 1.8 GHz |
| Memory | 2G DDR3 | |
| Storage | EMMC 8G(16G Optional) | |
| GPU | ARM Mali-T764 | |
| Lan | RTL 8211E 1000 Lan | |
| Audio | RTL ALC662 | |
| Operation System | Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04 | |
| I / O | H-DMI | 1 x H-DMI |
| LAN | 1 x LAN | |
| USB | 4 x USB 2.0 | |
| COM | 2 x RS232 | |
| Audio | 1 x AUDIO | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| LCD Panel | Panel Size | 17" LED |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 395 x 327 x 58 mm | |
| Cut-out Size | 381 x 313 mm | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
| Power Consumption | ≦20W | |
Competitive Advantages:
Well and High Quality Control;
Prompt Delivery;
Competitive Price;
Earth-friendly Products;
Small Trial Order Acceptable;
OEM/ODM service welcome.
Applications
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
