Quad Core Medical Panel PC

Quad Core Medical Panel PC
Quad Core Medical Panel PC Quad Core Medical Panel PC Quad Core Medical Panel PC

Large Image :  Quad Core Medical Panel PC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-J017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Quad Core Medical Panel PC

Description
IP Rating: Front IP65 Led Panel: 17" LED
Resolution: 1280 X 1024 CPU: Intel Celeron Quad Core J1900 2.0GHz
Memory: 4GB, Up To 8GB HDD: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive Touch
Highlight:

4GB RAM Medical Panel PC

,

Quad Core Medical Panel PC

17" Customized 4GB RAM Desktop J1900 Quad Core Medical Panel Pc With 2*COM

Feature

PPC-J017SAC is a cost-effective industrial grade Panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.



This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.



1. Aluminium alloy front panel, front IP65 waterproof

2. 17" TFT LED, resolution 1280*1024, 10 points capacitive touch

3. Intel j1900 CPU:2.0GHz silent fanless industrial panel PC

4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection

5. Built-in TPM2.0 for Hardware-based Security

6. DC 9~36V, overcurrent, overvoltage & reverse connection protection


PPC-J017SAC
System CPU Intel Celeron Quad Core J1900 2.0GHz
L2 Cache 2MB
Chipsets Intel Bay Trail SOC
Memory DDR3L 1333MHz 4GB, Up to 8GB
Harddisk 1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
Graphics Intel HD Graphics
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows7 / 8 / 10, Linux, Ubuntu, Debian

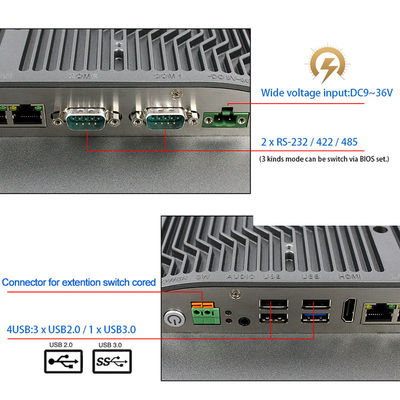

I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 3 x USB2.0 / 1 x USB3.0
COM 2 x RS-232 / 422 / 485
Wireless Network 4G / WiFi / Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 17" LED
Resolution 1280 x 1024
Aspect Ratio 5:4
Display Brightness 400 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 395 x 327 x 60 mm
Cut-out Size 381 x 313 mm
Packing Size 500 x 180 x 450 mm
Gross Weight 8 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦30W

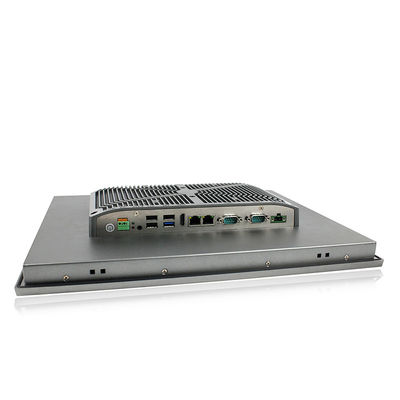

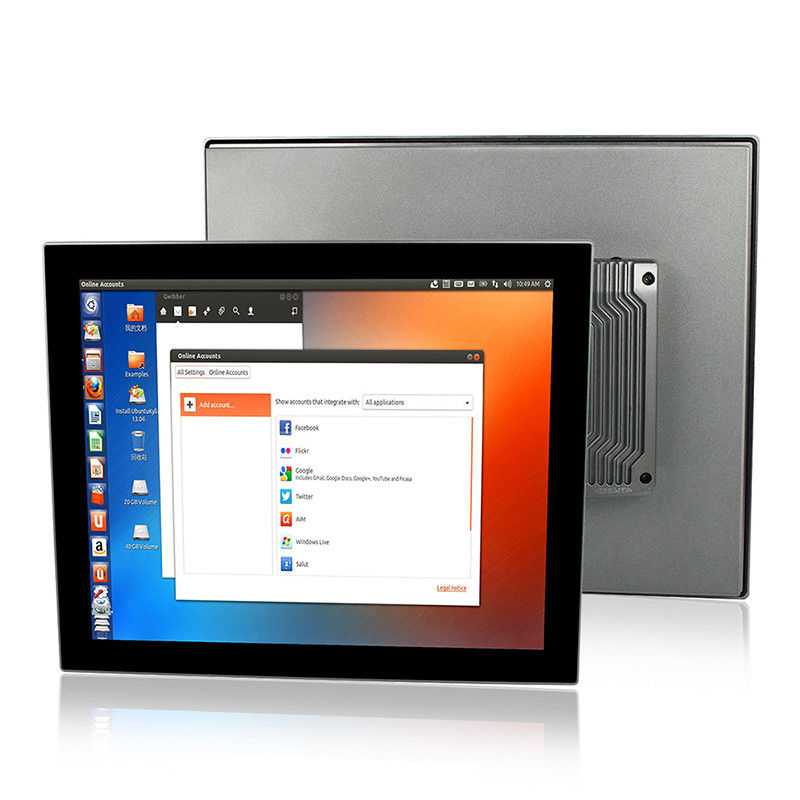

Quad Core Medical Panel PC 0Quad Core Medical Panel PC 1Quad Core Medical Panel PC 2





Advantage

1. QYT industrial grade panel PC offer different installation style, such as desktop, embedded, wall-mounted and rack-mounted, cantilever.



2. Color: black or gray, offer appearance color customization service.



3. Industrial all-in-one PCs meet IP65 waterproof and dust-proof standard.



4. Working temperature is -20~70 °C, humidity range is 5%~95%.



5. Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.



6. Aluminium alloy shell, high performance for heat-dissipation.



7. Support non-touch, resistive touch and capacity touch screen.



8. The panel PC provide standard I/O interface: VGA, HD-MI, LAN, USB, COM, also support other customized multi-ports.



9. Anti-interference design to meet EMI / EMC standards.



10. 8KV Static Electricity & 600W TVS Surge Protection



11. Offer multitude ports for customers according to different application. Support expansion.





FAQ

1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.

6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
