Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 24" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | Embedded HMI Panel PC,8265U HMI Panel PC,1920*1080 industrial touch panel pc |
||
Feature

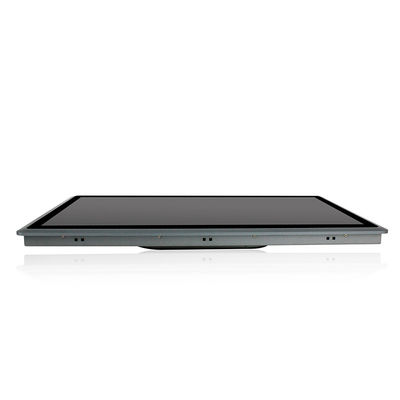

This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
1. 24" TFT LED, resolution 1920*1080
2. Adopt 10 points capacitive touch screen
| PPC-5024WAC | ||
| System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |

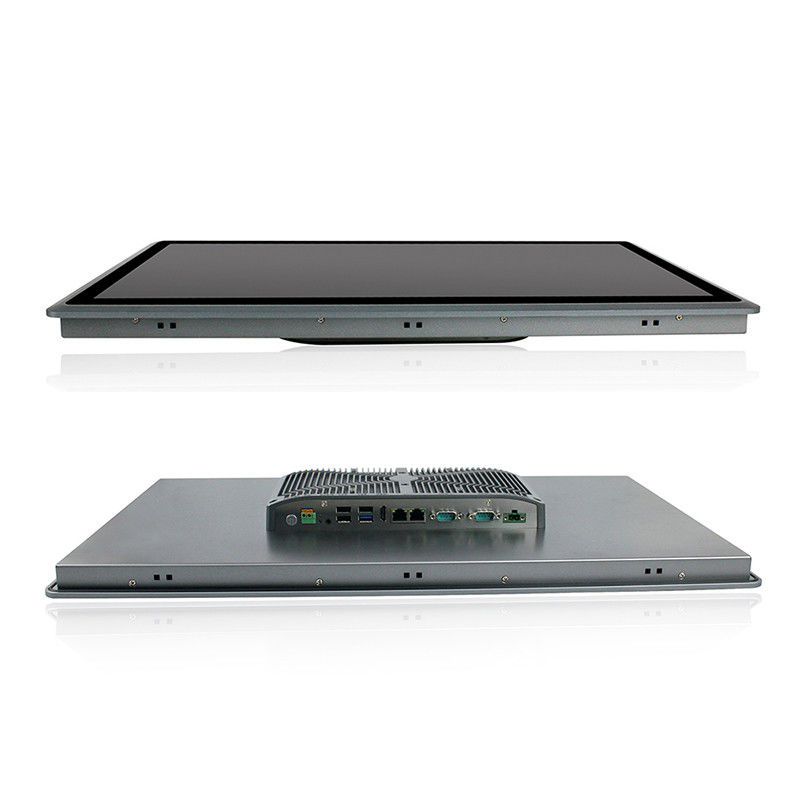

| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 24" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

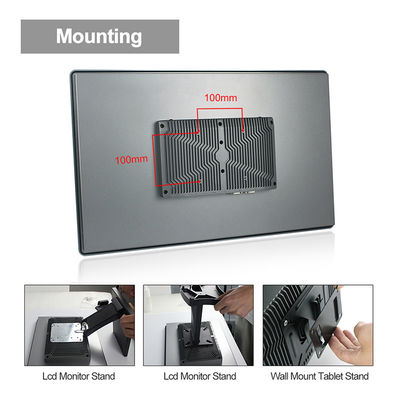

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 594 x 377 x 60 mm | |
| Cut-out Size | 577 x 359 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦50W | |
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
Advantages:
1. QYT industrial grade panel PC offer different installation style, such as desktop, embedded, wall-mounted and rack-mounted, cantilever.
2. Color: black or gray, offer appearance color customization service.
3. Industrial all-in-one PCs meet IP65 waterproof and dust-proof standard.
4. Working temperature is -20~70 °C, humidity range is 5%~95%.
5. Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.
6. Aluminium alloy shell, high performance for heat-dissipation.
7. Support non-touch, resistive touch and capacity touch screen.
8. The panel PC provide standard I/O interface: VGA, HD-MI, LAN, USB, COM, also support other customized multi-ports.
9. Anti-interference design to meet EMI / EMC standards.
10. 8KV Static Electricity & 600W TVS Surge Protection
11. Offer multitude ports for customers according to different application. Support expansion.
