Product Details:
|
| Waterproof Rating: | Front IP65 IP66 IP67 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Multi-Touch PCAP |
| VESA: | 100 X 100 Mm | TPM: | TPM2.0 |
| High Light: | Desktop IP67 Panel PC,PCAP IP67 Panel PC,VESA multi touch panel pc |
||
Feature
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.

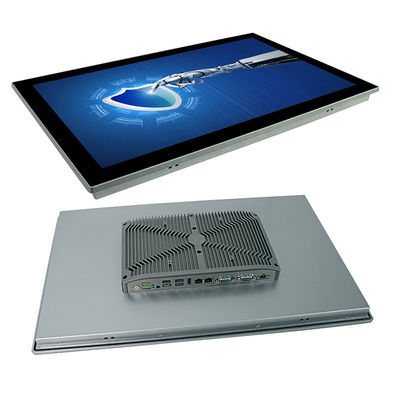

1. 21.5" TFT LED, resolution 1920*1080, Multi-Touch PCAP
| PPC-3215WAC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 21.5" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250 cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

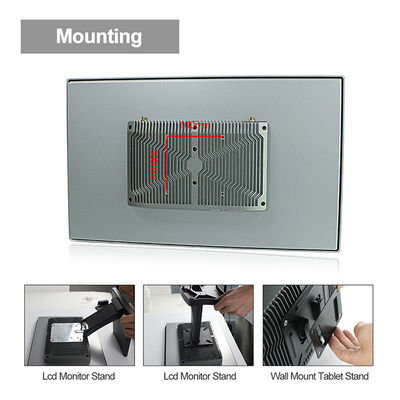

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 538 x 330 x 60 mm | |
| Cut-out Size | 520 x 312 mm | |
| Packing Size | 630 x 190 x 480 mm | |
| Gross Weight | 12 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Advantages:
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
I/O Interface:
The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
Wide Working Voltage:
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection
Extended Operating Temperature:
The computer supports extended temperature(-20°C ~ 70°C) to allow application in difficult and harsh environment.
Touch:
Intuitive multi-touch interface to easily control and manage production processes.
Applications
Parking lot manage system
Charger station
Petroleum dispenser machine
Accesse control system
Marine environment
Industrial automatic machine
