10.4" Led Medical Panel Pc , FCC IP68 IP69K Touch Panel Computer
IP68 IP69K 10.4" Led Fully Sealed Waterproof Panel Pc Medical Equipment Operating Temperature -10~60°C The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion. 1. 10.4" TFT LED, resolution 800 * 600, resistive touch 2. Intel Bay trail j1900 CPU: 2.0GHz 3. Multi ports for option: VGA/HD-MI/LAN/USB/COM 4. Operating
10.4" Led medical panel pc
,IP69K medical panel pc
,FCC touch panel computer

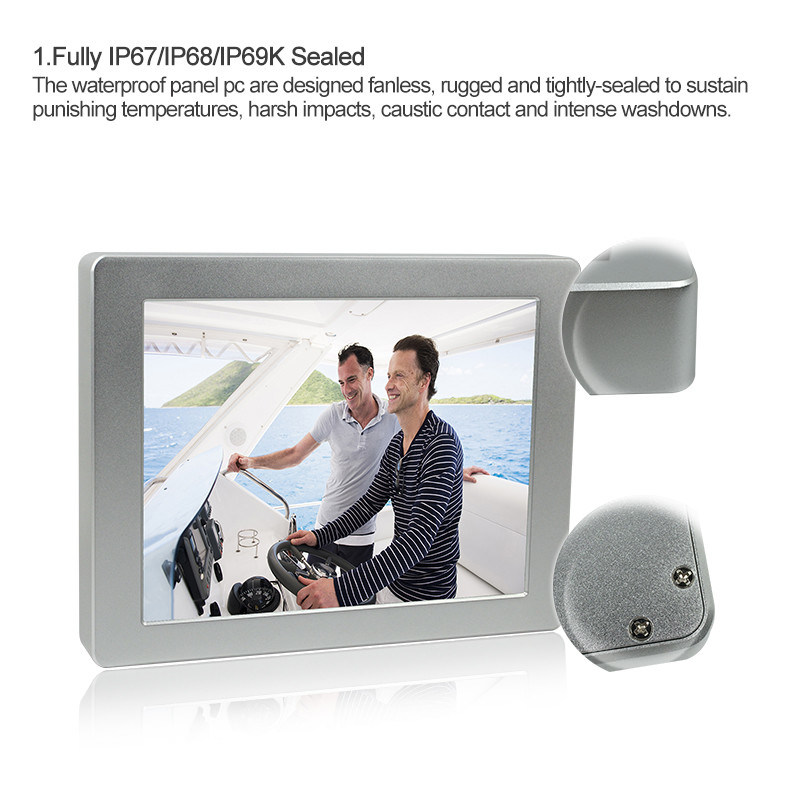

IP68 IP69K 10.4" Led Fully Sealed Waterproof Panel Pc Medical Equipment Operating Temperature -10~60°C
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
1. 10.4" TFT LED, resolution 800 * 600, resistive touch
2. Intel Bay trail j1900 CPU: 2.0GHz
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
| WPC-J010SAR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 500:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70 / 70 / 60 / 70 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 4 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 75 x 75 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 265 x 210 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Applications
marine/Sailing boat
medical equipment
humid production equipment
food Industry
chemical manufacturing
outdoor applications
