I5 6200 10 Inch Waterproof Touch Screen PC LAN USB RS232 Port Optional
10" Full IP65 Waterproof Industrial Touch Screen Panel PC I5 6200 LAN USB RS232 Port Optional Feature The unit is equipped with 6-side IP65 protection. The IP65 compliant I/O cover has special M12 waterproof connectors and cables and is available in backward or downward orientation depending on the need of the customer. which makes it ideal for food, livestock, chemical, mining, petro and factory automation or any other industrial applications. Customization. 1. 10.4" TFT LED
I5 6200 Waterproof Touch Screen PC
,10 inch Waterproof Touch Screen PC
,RS232 10 inch panel pc

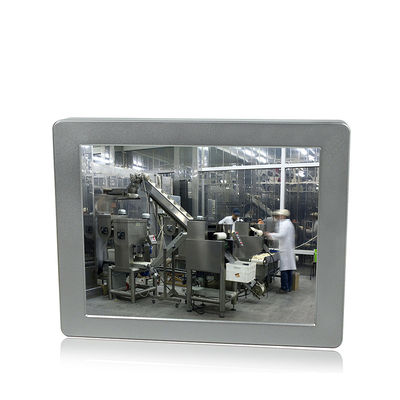

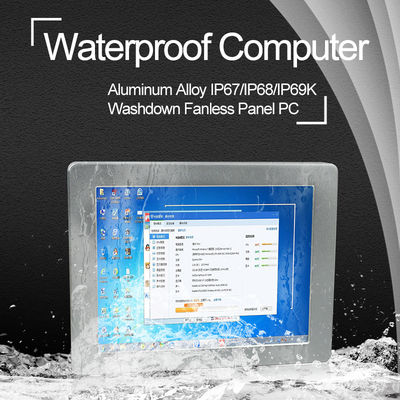

10" Full IP65 Waterproof Industrial Touch Screen Panel PC I5 6200 LAN USB RS232 Port Optional
Feature
The unit is equipped with 6-side IP65 protection. The IP65 compliant I/O cover has special M12 waterproof connectors and cables and is available in backward or downward orientation depending on the need of the customer.
which makes it ideal for food, livestock, chemical, mining, petro and factory automation or any other industrial applications.
Customization.
1. 10.4" TFT LED, resolution 800 * 600, resistive touch
2. Intel Core i5-6200U Dual Core 2.5GHz
3. Multi I/O optional: VGA/HD-MI/LAN/USB/RS232
4. OS: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage optional
| WPC-P010SAR | ||
| System | CPU | Intel Core i5-6200U Dual Core 2.5GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 500:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70 / 70 / 60 / 70 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 4 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 75 x 75 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 265 x 210 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Accessories
WPC-P010SAR Waterproof Panel PC
1x Utility DVD Driver
1x Power Adaptor
Applications
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.
4. Heat sink in back case great for heat dissipation and beautiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
