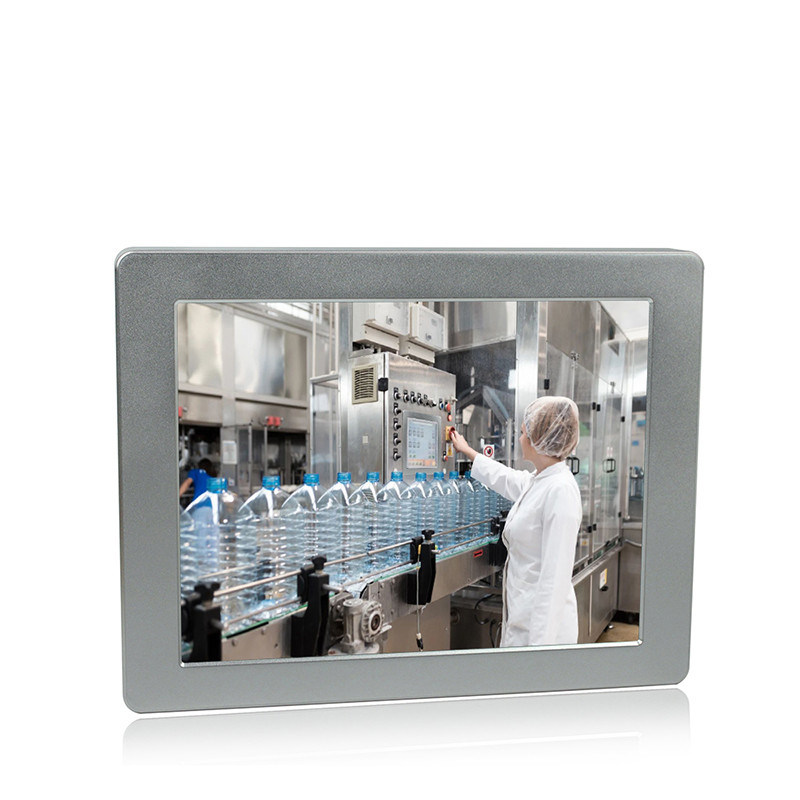

12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof

12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof
12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof 12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof

Large Image :  12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP68, IP69K
Model Number: WPC-J012SAR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Foam + Carton
Delivery Time: 3-5 Working Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof

Description
IP Rating: IP68 / IP69K Led Panel: 12" Led
Resolution: 800 X 600 CPU: Intel Celeron Quad Core J1900 2.0GHz
RAM: 4GB, Up To 8GB Harddisk: 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
I/O Port: VGA/HD-MI/LAN/USB/RS232 Touchscreen: Resistive Touch / Capacitive Touch
Product Dimension: 310 X 241 X 42 Mm Packing Size: 450 X 170 X 350 Mm
High Light:

Resistive fanless industrial touch panel pc

,

J1900 fanless industrial touch panel pc

,

12 Inch industrial touch pc

12 Inch Ip68 Fully Sealed Waterproof Panel Pc Resistive Touch Screen J1900

Feature

The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.



1. 12" TFT LED, resolution 800 * 600, 5 wire resistive touch


2. Intel Bay trail j1900 CPU: 2.0GHz, full ip68 waterproof industrial pc

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC12V~24V Input,(+9V~36V)wide voltage input optional

6. 1000nits sunlight readable optional

WPC-J012SAR
System CPU Intel Celeron Quad Core J1900 2.0GHz
L2 Cache 2MB
Chipsets Intel Bay Trail SOC
Memory DDR3L 1333MHz 4GB, Up to 8GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics
Network Intel 82583V 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O VGA 1 x VGA / 1 x HD-MI ( Optional )
LAN 1 x LAN ( Optional )
USB 4 x USB ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 12" Led
Resolution 800 x 600
Aspect Ratio 4:3
Display Brightness 400 cd/m2
Contrast Ratio 800:1
Colors 262K/16.7M , 55% NTSC
Response Time 30 (Typ.)(Tr+Td) ms
Viewing Angle 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type 5 wire resistive touch
Transmittance >85%
Response Time <5ms
Surface Hardness ≥3H
Supply Voltage 5.0V DC
Touch Life ≧ 1000W
Institutional Material Aluminum Alloy Shell
Color Silver / Black ( optional )
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP67 / IP68 / IP69K
Product Dimension 310 x 241 x 42 mm
Cut-out Size /
Packing Size 450 x 170 x 350 mm
Gross Weight 5.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦30W

12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof 0

12 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof 112 Inch Resistive J1900 Fanless Industrial Touch Panel Pc Fully Sealed Waterproof 2



OEM/ODM

1. size from 7''-21.5'' available

2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board

3. Capacitive touch / Resistive touch or without touch

4. 1000nits, 1500nits high brightness for sunlight readable

5. DC 9V~36V wide voltage input



Waterproof Panel PC Applications



Industrial automation



human Machine Interface



Marine control system



welding industry



supervisory control



numerical control device





FAQ

1. Q: Are you a manufacturer or trading company?

A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?

A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?

A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?

A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?

A: 3 business days for samples order, 15 business days for mass production.

6. Q: What is the MOQ?

A: Sample testing is acceptable, the price is negotiable for bulk order.
