Windows7 Rugged Embedded Computer 4*RS232 Industrial Use
OEM Windows7/8/10 Industrial J1900 Fanless Rugged Embedded Computer With 4*RS232 Feature QYT's Rugged Embedded PC serves a broad spectrum of applications with designs focused on weathering harsh operational conditions. The durability of Rugged Embedded PC’s allow them to stand out as excellent candidates for GPS systems, 24 hour surveillance and IoT infrastructures. Resilient and reliable hardware equipped in this product lineup will provide the confidence one desires towards
Windows7 Rugged Embedded Computer
,RS232 Rugged Embedded Computer
,Rugged industrial embedded pc

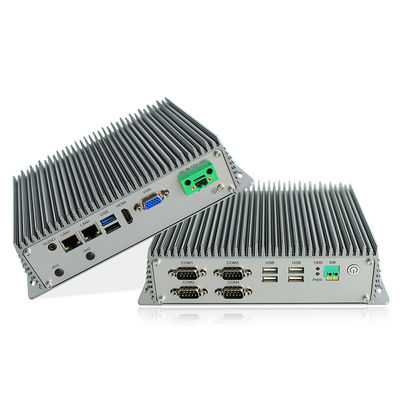

OEM Windows7/8/10 Industrial J1900 Fanless Rugged Embedded Computer With 4*RS232
Feature
QYT's Rugged Embedded PC serves a broad spectrum of applications with designs focused on weathering harsh operational conditions. The durability of Rugged Embedded PC’s allow them to stand out as excellent candidates for GPS systems, 24 hour surveillance and IoT infrastructures. Resilient and reliable hardware equipped in this product lineup will provide the confidence one desires towards the longevity of their projects.
We offers many Fanless Embedded PCs that supply high performance and low power consumption. Their multiple I/Os along with a small footprint makes them an ideal computing solution for tight places. With less moving parts, maintenance as well as down time is lessened giving you the confidence of many years of service.
1. Aluminium alloy shell
2. Intel Bay trail j1900 2.0GHz, industrial mini pc with gpio
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
| EFIC-1000JA | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x VGA / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 5 x USB2.0 / 1 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦15W | |
Applications
ATM
Pos machine
vending machine
Digital signage
Industrial automation
kiosk
machine control
telecomommunication
laser cutting machine
CNC machine
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
