Product Details:
|
| CPU: | Intel Core I3-6100U Dual Core 2.4GHz | Memory: | DDR4L 2133MHz 4GB, Up To 16GB |
|---|---|---|---|
| Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | VGA/HD-MI/LAN/USB/COM |
| Power Input: | DC 12V~24V / Optional(+9V~36V) | Operating System: | Win7/8/10/Linux/Ubuntu |
| Power Consumption: | ≤30W | Working Time: | 7*24h |
| Highlight: | Din Rail Industrial Fanless Mini PC,Edge Gateway Industrial Fanless Mini PC |
||
Feature
Fanless designed industrial computer, there is no need to worry about moving part failures. The system passively dissipates heat from processors and other vital computer components. Fanless systems can be fully enclosed, keeping dust and debris out of the system. A fanless computer is extremely quiet, making it ideal for situations such as the main computer monitoring and control of Industrial Automation, Mechanics Solution, CNC Equipment, Textile Equipment, Intelligent power solution, Food Traceability and so on.
The embedded fanless industrial pc is compatible with Windows, Linux OS and embedded OS,also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
1. Aluminium alloy shell
| EFIC-1000OA | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x VGA / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 4 x USB2.0 / 2 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |

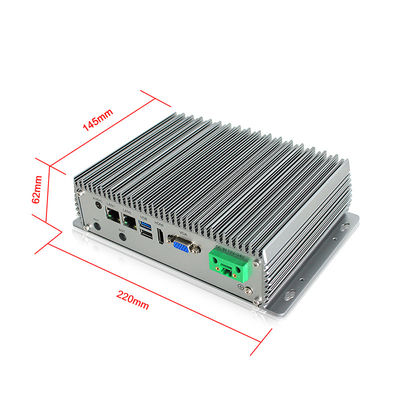

| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦15W | |
Advantages
1. Sealed construction with fanless design, noiseless, low-power consumption design.
2. Aluminum alloy brushed metal craft, compact, low weight design, excellent heat dissipation.
3. Suitable for harsh operating environment, dustproof,anti-corrosion, anti-shock .
4. High performance motherboard, 7x24 continuous operation
5. Wide operating temperature support
6. With high electromagnetic compatibility and anti-interference capacity
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
